MASTERLOADx.iQ

MASTERLOADx.iQ

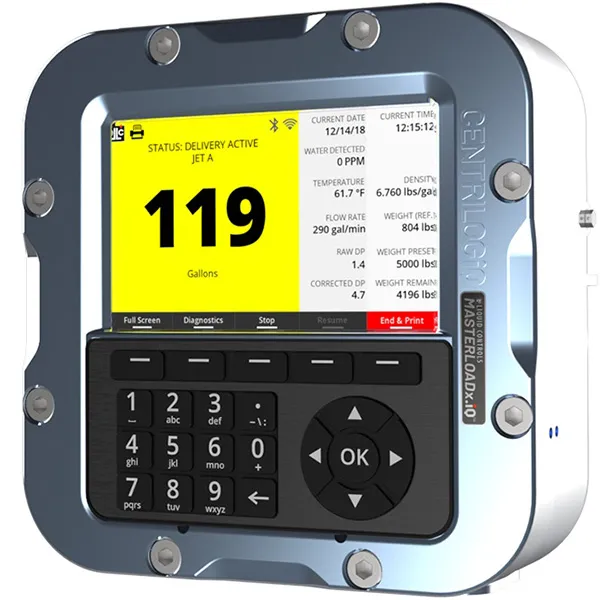

The MASTERLOADx.iQ, is the Zone 1 rated register from Liquid Controls with all the smarts from the LCR.iQ®, the most advanced, configurable, and expandable fueling register ever produced.

LC engineers designed the MASTERLOADx.iQ from the user’s perspective, resulting in a configurable interface that guides the operator through every fueling event to maximize fueling safety and productivity and minimize risk of error.

Features

•   Fully configurable screen data
•   TANKiQ inventory control
•   Customizable fueler prompts
•   Wireless data accessibility
•   Wireless Bluetooth printing
•   Digital valve control
•   Selectable languages
•   Day & night modes
•   LCR.iQ networking
•   SENSEiQ I/O expansion board

Additional New Features in LCR.iQ

•   Definable Fueler Prompts: Prompt the driver with customizable questions before or after each delivery such as Customer #, gate # (aviation), driver #, or any additional input you need to be printed on the ticket or electronic record.
•   Pump start and stop timer control:  Set pump start and stop times relative to the beginning or end of the delivery.
•   Differential Pressure for 4-20mA devices:  Allows configuration of 4-20mA pressure sensors to measure and report dP in aviation applications, in addition to conventional RS-485 connected devices.
•   API Table 60B net volume temperature compensation: Provides an additional net volume temperature compensation method using API table 60B (for 20 °C reference temperature).
•   Net volume indication as a reference:  Allows you to display net volume as a reference value, while maintaining gross volume as the primary indication.
