Liquid Controls

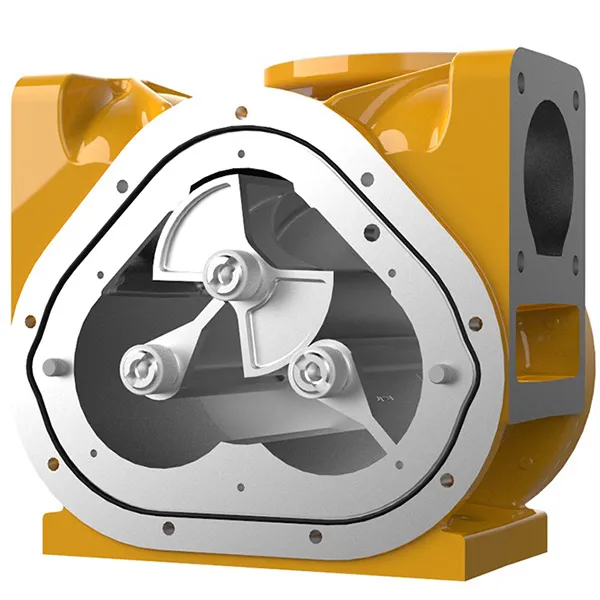

LC M-Series & MSAA-Series Meters

LC M-Series & MSAA-Series Meters

Liquid Controls positive displacement (PD) flowmeters provide the industry’s most time-proven record of superior accuracy, performance, and long-term durability in custody transfer of refined and alternative fuels.

Simplicity of design and construction, together with sustained accuracy is why customers prefer Liquid Controls meters in a variety of fluid custody transfer applications throughout the world.

Key Features

• Sustained Accuracy — no metal-to-metal contact inside the measuring chamber means minimal deterioration in accuracy over time, fewer recalibrations, and longer service life.
• Meters conform to NIST and International Weights and Measures accuracy requirements.
• Wide Temperature Range — products can be metered accurately from -40° F (-40° C) to 160° F (71°C).
• Wide Viscosity Range — LC meters can accurately meter products from less than 30 SSU (less than 1 centipoise) to 1,500,000 SSU (325,000 centipoise)
• Maximum Adaptability — right angle design with choice of stock or custom elbows/ fittings provides unequaled mounting flexibility to meet your installation requirements.
• High Pressure rating — Rated to 150psi / 10.5 BAR.
