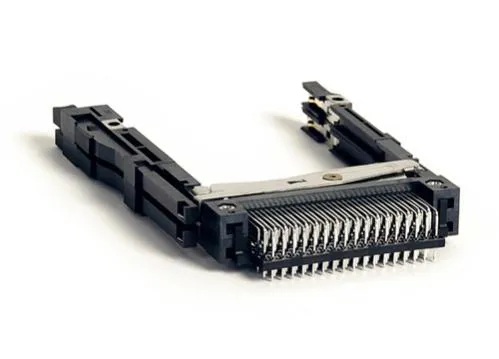

PCMCIA Connectors

PCMCIA Connectors

PCMCIA Connectors accept type I, II and III PCMCIA cards.

Features:

Meets PCMCIA release 2.1 requirement z Different levels of connection pin
Accepts type I, II and III PCMCIA cards z Pin n°: 1, 17, 34, 35, 51 and 68, Height: 5.00mm
Pitch 1.27mm(0.50") z Pin 36 and 67, Height: 3.50 mm. The remainder 4.25mm
Insulator: LCP UL94V-0 z Contact Material: Beryllium or Phosphor Bronze
Available with or without ejection bar
Contact plating in selective gold

Electrical Features:

Current rating: 0.5 A AC z Insulation resistances:
Voltage rating: 220 V AC Initially: 1000 MΩ min.
Operating Temperature: -20°C to 60°C
After tests: 100MΩ min.
Contact Resistance:
Initially: 20mΩ max.
After test: 40mΩ max.
Withstanding voltage: 500V AC/minute
Applicable PC board thickness: 0.60 to 1.60 mm.
