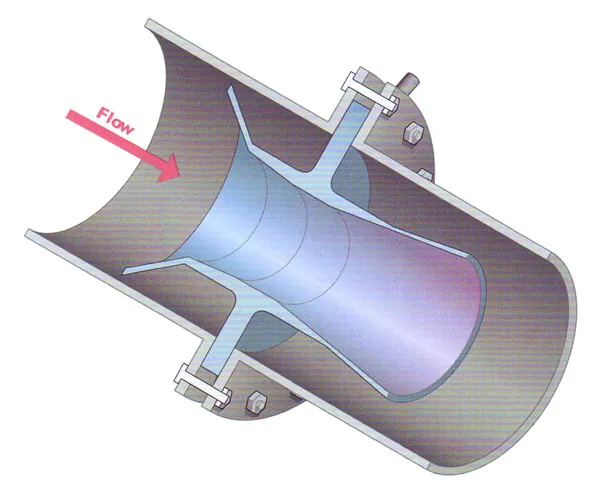

Model 2350 Venturi Flow Meter

Model 2350 Venturi Flow Meter – For Tight Space Requirements!

The very short-laying length Model 2350 provides high accuracy and low permanent pressure loss while minimizing space requirements. The flow conditioning within the inlet section allows for closer coupling with upstream pipe fittings.These easy to install, low maintenance devices provide reliable performance and minimal headloss for a wide range of municipal and industrial applications.

Made of dimensionally stable fiberglass-reinforced vinyl ester epoxy ensures accurate flow measurement and long life.Highly corrosion resistant, self-scouring, and accommodates a wide range of line fluids, line pressures and temperature conditions up to 350°F.

The carbon steel holding flange is coated with vinyl ester epoxy and has 316 stainless steel pressure connections. The Model 2350 comes ready to install with neoprene flange gaskets to fit pipes from 3/4" to 120". It can be supplied with bronze, stainless steel, or other metal throat materials.

Advantages:

• Short Laying Length
• Low Permanent Pressure Loss
• Low Cost – 1/3 the Cost of Cast Iron
• Corrosion Resistant
• Easy Installation Between ANSI Flanges
• Minimal Maintenance – Install it and forget it
• Consistent Accuracy
• Long Service Life!
