Lambda Square

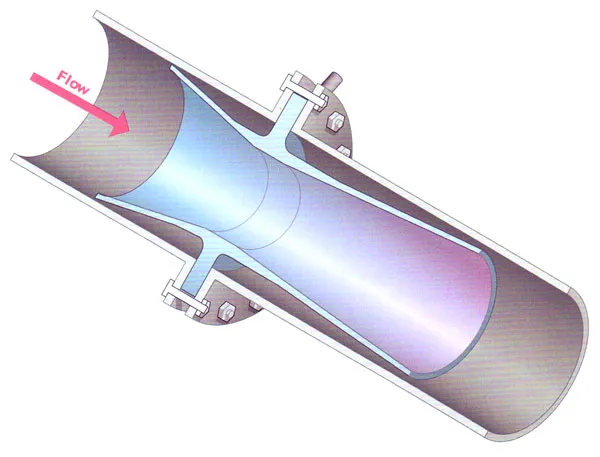

Model 2300 Venturi Flow Meter

Model 2300 Venturi Flow Meter – When Low Headloss is a Priority!

The Model 2300 offers short laying length, easy installation, high accuracy, and very low permanent pressure loss. It is corrosion-resistant and carries minimal maintenance requirements, making it as economical as it is accurate and consistent. These low maintenance devices provide reliable performance and minimal headloss for a wide range of municipal and industrial applications.

Made of dimensionally stable fiberglass-reinforced vinyl ester epoxy ensures accurate flow measurement and long life.Highly corrosion resistant, self-scouring, and accommodates a wide range of line fluids, line pressures and temperature conditions up to 350°F.

The carbon steel holding flange is coated with vinyl ester epoxy and has 316 stainless steel pressure connections. The Model 2300 comes ready to install with neoprene flange gaskets to fit pipes from 3/4" to 120". It can be supplied with bronze, stainless steel, or other metal throat materials.

Advantages:

• Very Low Permanent Pressure Loss
• Low Cost 1/3 the Cost of Cast Iron
• Corrosion Resistant
• Excellent Flow Measurement
• Accurate
• Easy Installation
• Minimal Maintenance - Set it and forget it!
• Long Service Life
