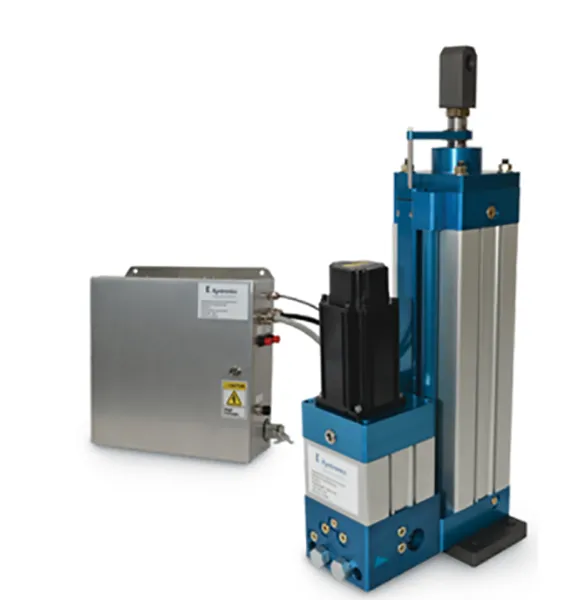

S-Series SMART Hydraulic Actuator

S-Series SMART Hydraulic Actuator

All-In-One Electro-Hydraulic Actuation Solution

S-Series Features:

• High-Precision Brushless Servo Motor
• Servo-Controlled, Precise Displacement, Bi-Directional Variable Speed Pump
• Manifold with Integral Valve Controls
• Heavy-Duty Rod / Cylinder with Patent-Pending Rod Compensation
• Servo Drive / Motion Controller
• Fieldbus Interface
• IoT Compatible
• High-Resolution Position Sensor
• Optional Pressure Sensor for Force Control Operation

A Complete Actuation System that is Factory Engineered and Ready to Install

Fusing the Power of Hydraulics with the Precision of Servo Control

Advantages:

The S-series SMART Electro Hydraulic Actuator (SHA) combines proven technologies into an innovative new actuation product.  The SHA offers significant advantages  compared with hydraulic cylinder actuators or high-force Electro-Mechanical ball screw / roller screw actuators including:

• Eliminates costly, messy and energy-wasting hydraulic power units used with hydraulic cylinders and the all-in-one design of the SHA eliminates hoses and leaky connections.
• The SHA's high force-density provides a very cost-effective alternative to Electro-Mechanical actuators  and requires far less maintenance.
• The SHA has built-in precision servo control of position, force and speed; costly and difficult to do with hydraulic cylinders.
• Ideal in rugged applications that damage and cause pre-mature failure with ball screw/roller screw actuators.
• Simple setup and integration with common networks, including CanBus, Ethernet, Modbus and others.
• The SHA comes as a complete package, factory-tuned and ready to install saving hours of time.

Overview Specifications:

• Force Range: Up to 85,000 lbf (377 kN)
• Speed: Up to 45 in/s (1,159 mm/s)
• Stroke Length Up to 120” (3,048 mm)
• Voltage: 120, 240, 460 VAC
• Configurations: Parallel, In-Line, 90 degree
