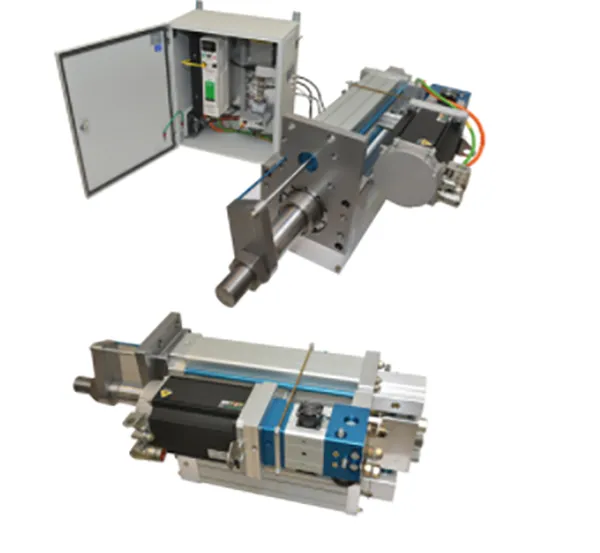

H-Series SMART Hydraulic Actuator System

H-Series SMART Hydraulic Actuator System

All-In-One Actuation System that Combines High Speed & High Force Functionality in a Single Integrated Package

H-Series Features:

• High-Speed Cylinder for fast extend/retract operation
• High Force Cylinder for the high-load component of the cycle
• Compact / Integrated Accumulator
• Precision Controlled Brushless Servo Motor
• Servo-Controlled, Precise Displacement,Bi-Directional Variable Speed Pump
• High-Resolution Position Sensor
• Pressure Sensor for Force Control Operation
• Manifold with Integral Valve Controls
• Servo Drive / Motion Controller Package
• Fieldbus Interface
• IoT Compatible
• Cabinet or Subplate options

Replace Costly Hydraulic Actuation Systems and HPUs with the H-Series

Advantages:

The Kyntronics H-series High Speed / High Force SMART Electro Hydraulic Actuator (SHA) combines a high-speed cylinder, a high-force cylinder, servo-driven power unit, servo motor and drive/motion controller into a fully integrated All-In-One actuation package that saves money and provides precision control.

The H-series is ideal for applications such as metal fabrication presses, injection molding toggle clamping mechanisms and others that have a longer stroke at low-load followed by a shorter, high load stroke.

• A Lower cost alternative compared with oversized, leaky and high-maintenance hydraulic system actuators.
• Built-in precision servo control of position, force and speed in all four motion quadrants.
• Power-on-demand operation provides significant energy savings over hydraulics.
• Ideal in rugged applications that damage and cause pre-mature failure with ball screw/roller screw actuators.
• Simple setup and integration with common control networks, including CanBus, Ethernet, Modbus and others.
• A complete package, factory-tuned and ready to install saving hours of time.
