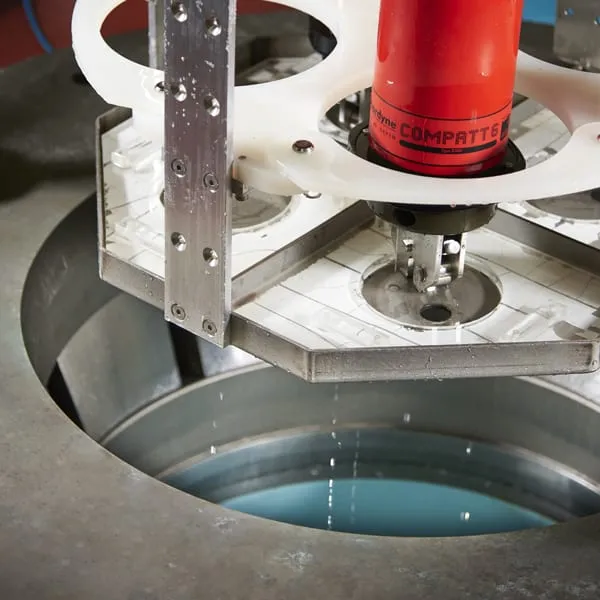

High Pressure Vessels with Actuated Chock Closures
High Pressure Vessels with Actuated Chock Closures
Our KW Designed Solutions designed and developed actuated chock closure high pressure testing vessels are equipped with an automated quick-acting closure. Our innovatively engineered vessel closure, uses electrically actuated sliding chocks, that lock the closure plug in place. Its robust design provides the operator with a quick and simple opening and closing of the vessel, with the push of a button.
The compact nature of the actuated chock closure allows the body of the vessels to be shorter in height, making them ideal for use in facilities where height is restricted. Manual handling of the relatively heavy chocks is not required, as they simply retract when actuated, into the wall of the vessel body.
The closure plug is the only item that requires handling, during the opening and closing of the pressure vessel. It is relatively low weight and numerous attachment points ensure it can be raised/ lowered using a standard hoist, with a low to moderate lifting capacity. The closure comes with a plug guidance system (PGS) for alignment with the vessel and attachment points are also included on the underside of the closure for hanging off the device under test (DUT).
Used in vertical orientation, these pressure vessels have a relatively small footprint, taking up minimal shop floor space. The pressure vessel can be provided with its own closure handling system, can be installed below ground level or supplied with its own structural safety enclosure.
Features
- Materials of construction: Stainless Steels, Carbon and Alloy Steels
- Multi-Penetration Closure
- Multi-Penetration Vessel Body
- Pressure: 200 bar to 690 bar
- Push-button Lock/ Unlock with Status Indication and Integral Safety Interlock System
- Seal Type: O Ring with PTFE back-up-ring or Springsele®,
- Size: Between Ø500mm to Ø1800mm Bore and Depths of 1000mm to 7500mm
- Temperature: -20°C to 200°C
- Volumes: 200 litres to 20,000 litres
Benefits
- Custom Size and Pressure Range Available to Meet Specific Requirements
- Guided Closure Alignment System Allows Easy and Safe Operation
- Integral Safety Interlock System Prevents Accidental Opening and Allows for Integration with Pressure Control Systems and Safety Enclosure Door Locking Devices
- Long Service Life
- Low Maintenance Requirements
- Multiple Penetrations for Tooling, Electrical Feed-Through and Pressure Control Hardware
- Quick Acting Opening and Closing Times: 2 Minutes to Open/ Close, 20 Seconds to Lock/ Unlock
- Rapid, Single Push Button Lock/ Unlock Functionality
- SWL Rated Closure for Attachment of DUT (Device Under Test) – Reducing the Need for Separate Handling
