High Pressure Testing Systems with Segmented Clamp Closures

High Pressure Testing Systems with Segmented Clamp Closures

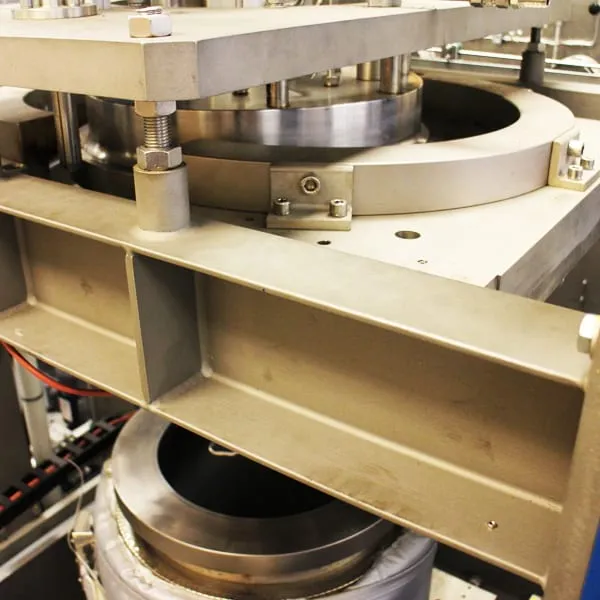

The KW Designed Solutions segmented clamp closure high pressure testing vessel has a quick-acting closure mechanism, which incorporates a 2 or 3-piece clamp arrangement. The segmented clamp closure is innovatively engineered; lightweight yet robust and provides the operator with a quick and simple opening/ closing functionality.

The segmented clamp closure is engineered so that the vessel body remains slender and the closure plug relatively lightweight. A compact flange profile is machined into both the pressure vessel body and the closure plug; ensuring the smooth engagement of the segmented clamps and effective containment of the end loads caused by high pressure.

We can also incorporate pressure vessel support frames and closure support frames into the design, to ensure closure alignment to the vessel body is maintained. For larger pressure vessels, automated closure mechanisms can be supplied to aid and simplify the handling of the segmented clamps and closure plugs whilst also optimising vessel access.

KW Designed Solutions segmented clamp closure pressure vessels are supplied with operating pressures of up to 2000 bar and a temperature range of -20°C to +300°C.

Features

• Materials of Construction: Stainless Steels, Exotic Steels (Hastelloy, Inconel), Carbon and Alloy Steels
• Pressure Rating: 50 bar to 2000 bar
• Seal Types: O seal, PTFE, Metallic Seals (BX Rings, C-Rings, Metal Seal Rings)
• Size: Between Ø75mm to Ø400mm Bore and Depths of 150mm to 2000m
• Temperature: -20°C to 300°C
• Volumes: 0.5 litres to 250 litres

Benefits

• Custom Size and Pressure Range Available to Meet Specific Requirements
• Integral Safety Interlocking System
• Long Service Life
• Low Maintenance Requirements
• Minimal Shop Floor Footprint
• Quick Acting Opening/ Closing Times: 2 Minutes to Open/ Close, 10 Seconds to Lock/ Unlock
