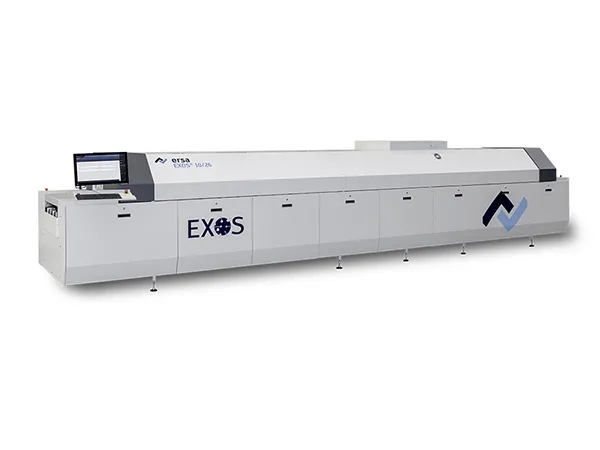

Exos 10-26

Exos 10-26

Ersa answers the demands of electronics manufacturing for pore-free solder joints - especially for power electronics and high-reliability technology - with the EXOS 10/26, a convection reflow soldering system with 22 heating chambers and 4 cooling zones as well as a vacuum chamber after the peak zone, which can reduce the void rate by an impressive 99%. Thanks to intelligent features, the EXOS 10/26 can produce particularly economically and "void-free".

Technology Highlights

• 4-part conveyor (infeed, preheating and peak, vacuum, cooling zone) also as dual track
• Perfect synchronization of the assemblies and transitions thanks to sensor-monitored conveyor, no external infeed module required
• Maintenance-friendly and lubricant-free roller conveyor in the vacuum module
• Optimum access to the vacuum chamber through lifting unit from above
• Optimum temperature profiles through medium-wave emitters in the vacuum module
• Maximum machine availability thanks to fast removal of the conveyor unit in the vacuum module
• Part-integrated vacuum pump on separate module carrier for easy and fast maintenance
• Innovative cleaning system SMART ELEMENTS®
