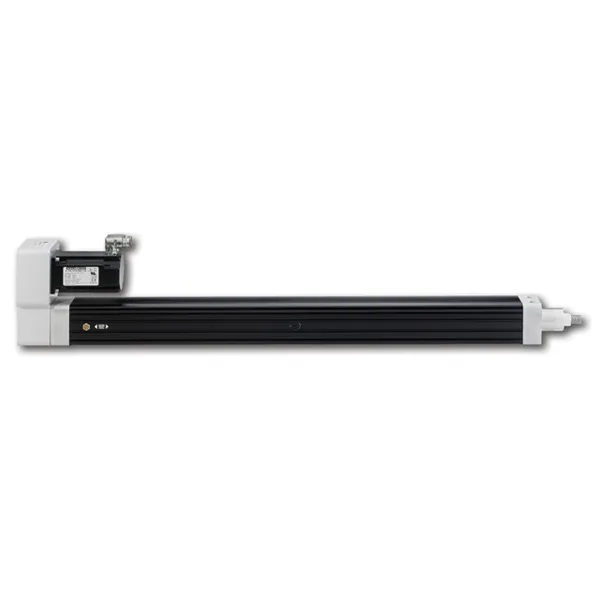

Electric Cylinders EC4 Series

Electric Cylinders EC4 Series

The EC4 Series provides robust electric cylinders for heavy-duty thrust loads. Precision-rolled ball screw types yield quiet operation, low backlash and high accuracy, with a selection of motor-to-screw reduction types. Exceptionally durable bearing and drive housings are available with optional environmental features to resist moisture and contaminants. The special design of these cylinders minimizes the need for routine maintenance.

Motors available for use with the EC4 Series include:

• KollmorgenT32T/V Series hybrid stepper motor (P7000 drive recommended)
• Kollmorgen AKM42E, 42G, 52G, 52L and 52H Series AKM™ brushless servo motors
• NEMA 34 and 42custom motor mounts

Features

• Max stroke length: 1,500 mm (59 in)
• Max thrust: 12,000 N (2,700 lbf)
• Ball screw driven with 10, 25 mm leads
• Stepper, brushless servo and custom motor options
• Bearing/drive housing: 6063-T6 aluminum, anodized
• Mounting plates: 6061-T6 aluminum, cast aluminum plate, anodized
• Thrust bearings: angular contact, high thrust ball bearings
• Belt/pulley: AT-5, polyurethane with steel tensile cords
• Guide cylinder: 6063-T6 aluminum, hard-anodized
• Thrust tube: 300 series stainless steel, 1/4 hard and ground
• Ball screw and nut: heat-treated carbon steel alloy
• Helical gearing: alloy steel, case-hardened

Options

• Standard or custom lengths to 1 mm
• Motor or screw brakes
• Threaded, spherical or clevis rod ends
• Environmental protective boot
• Timing belt, helical gear and inline direct transmission
• Flange, clevis, side and trunnion cylinder mounting types
• Magnetic home and limit sensors
• Linear potentiometer output
