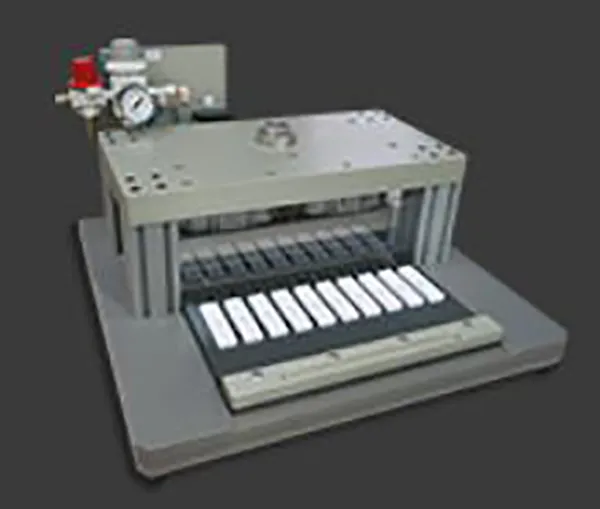

Multi Cassette Press

The cartridge components are placed into a base fixture which slides easily into the station. An actuator switch detects the presence of the base fixture and activates a cylinder to apply pressure to all cartridge assemblies simultaneously. The pressure is maintained for an adjustable time period. Then the base fixture is released and pushed free by spring pressure in the actuator switch.

Key Features

Air Pressure Controlled

Variable closing pressure

Variable pressing time

Multiple cassettes can be

Easy change-over to run

Options

Spare trays for staging

Change parts for different cassettes
