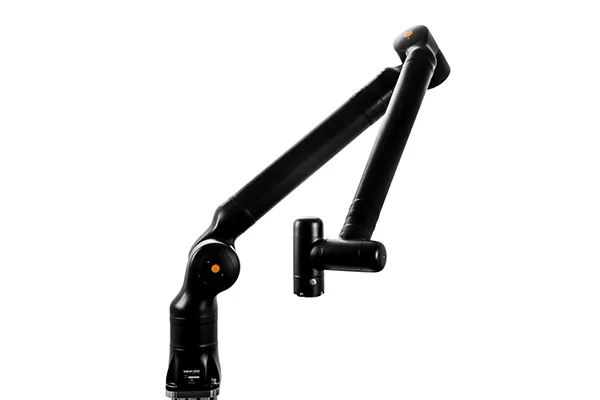

KR1805
Fast industrial cobot with an especially long reach of 1800 mm and no compromise on strength. Payload of 5 kg. Simple programming thanks to our special intuitive Kassow user interface.
Specifications:
Payload: 5 kg
Reach in all directions: 1800mm
Weight: 38 kg
Degrees of freedom: 7
Repeatability: +/- 0.1mm
Joint speed (deg / sec): 170/225
IP specification: IP54
TECHNICAL SPECIFICATIONS:
General specifications
KR 1805
Reach (mm)
1800
Payload (kg)
5
Weight (kg)
38
Joint Speed (deg / sec)
170/225
Joint Ranges
J2 and J4: -70°/+180°. J1, J3, J5, J6 and J7: ±360°
Brakes on joints
Yes
Absolute encoders on joints
Repeatability (mm)
+/- 0.1
Degrees of freedom
7
Foot print (mm)
160x160
Operating temperature (C°)
0-45
Body material
Anodized aluminum
Safety
Protection rating
IP54
Work without shielding
Yes*
Impact control
150N safe force limit on tool
Controller I/O
Digital outputs 24V (pcs)
8
Relay outputs (pcs)
4
Digital inputs 3-30V (pcs)
16
Analogue I/O 0-10V (pcs)
2/2
Analogue I/O 4-20mA (pcs)
