J.R. Merritt Controls, Inc.

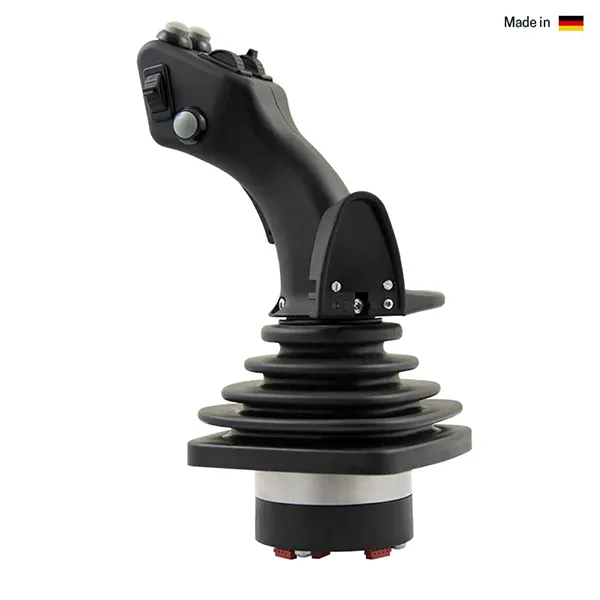

HS2 multi-axis joystick

HS2 multi-axis joystick

Designed for the most demanding applications, the HS2 multi-axis joystick offers durability and performance in a robust package. Available with Hall-Effect, CAN, ProfiBus, ProfiNet & 4-20mA outputs, the HS2 can be configured to a broad range of applications.

Overview

• Ideal for rugged applications
• Robust and reliable metal housing with stainless steel component
• 3D hall-effect technology designed to provide a long operating life
• Contactless design prevents wear and tear
• Sleek design with optional canister on bottom

Axis Options

• Single• Dual• Three

Output Options

• Hall-Effect• CANOpen• J1939• 4-20mA• ProfiBus• ProfiNet

Handle Travel Options

• Open Gate
• Cross Gate

Joystick Action

• Spring Return

Mounting Style

• Drop-in (From Above)
• Panel (From Below)

Applications

The compact design and variety of connecting links, final notchings and compatible handle shapes give the HS2 a wide range of application uses.
