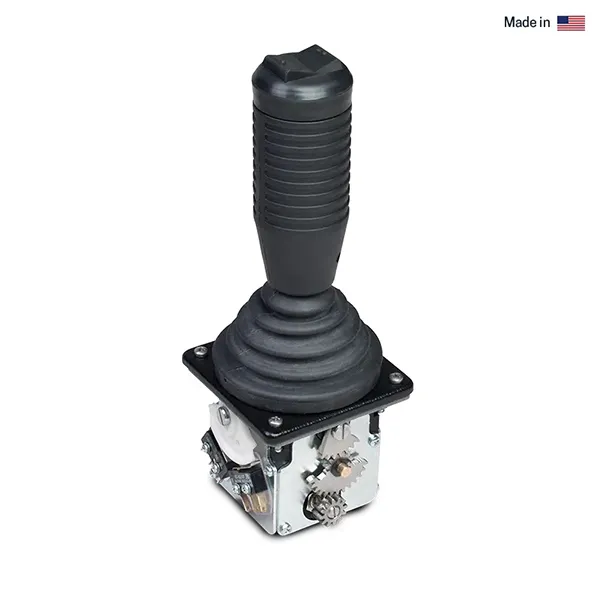

CS1 Joystick

CS1 Joystick

The CS1 boasts an ultra compact and extremely rugged design that is ideal for applications requiring bang/bang and/or potentiometer outputs. Single and dual axis control is available as well as a variety of custom configurable handles and grips.

Overview

• Compact and versatile design with the ability to mount potentiometers inside the body of the joystick

• Durable housing and heavy stainless steel gimbal yokes

• Resistant to abuse and ideally suited for high duty cycle applications

Axis Options

• Single
• Dual
• Three

Output Options

• Microswitches
• Potentiometer
• PWM

Handle Travel Options

• Open Gate
• Cross Gate

Joystick Action

• Spring Return
• Friction Brake

Mounting Style

• Drop-in (From Above)

Applications

The CS1 offers precision control in a compact body and is ideal for applications where space is at a premium. Typical applications include:

• Bang/bang (on/off) control

• Marine

• Forestry equipment

• Agricultural equipment

• Road maintenance vehicles

• Lifts & aerial work platforms
