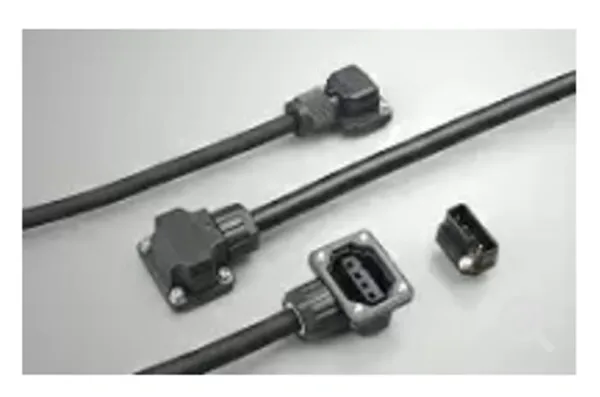

JN14 Series (Waterproof Connector for Compact Servomotors)

JN14 Series (Waterproof Connector for Compact Servomotors)

All-plastic, Low-profile, Waterproof Connector for Compact Servomotors

As robotics and other industrial machinery becoming increasingly compact, multi-axis, and multi-functional, the installation space allotted for devices such as servomotors are rapidly decreasing. There is particular demand for low-profile connectors that can be thread mounted directly to the box casing of metal shell type compact servomotors.Receptacle and plug mating of the JN14 Series is simple yet secure, where the plug is screw mounted to the box casing over the receptacle. In spite of its compact form-factor and low-profile the connector offers exceptional connection and waterproof performances. The connector series was designed with superior and ease of assembly and harnessing with secure mounting condition, as well as having a 180 degree reversible cable exit structure to suit the user's orientation preference.The JN14 Series line-up includes a 4-position connector for power, 2-position connector for brakes and 9-positon connector for encoders, all compatible with the specification of an I/O connector for compact servomotors larger than 40mm x 40mm. The 4-position power receptacle is equipped with a threaded hole for secure mounting, where the screw is also connected to the ground contact allowing for grounding directly to the metal box casing. The 2 and 9 position receptacles snap-in securely with ease by top-mounting directly to the metal box casing of the servomotor.

Features

• All-plastic, light-weight and low-cost connector.
• Low-profile screw mounting connector with superior connection strength, with resistance to shock and vibration while being waterproof.
• IP67 rated waterproof in the mated condition.
• Structure which enables automatic ground connection by screw directly to the metal box casing.
• Plug hood structure that allows user preferred cable exit orientation.
• Compatible with TÜV, UL/ cUL recognized.
