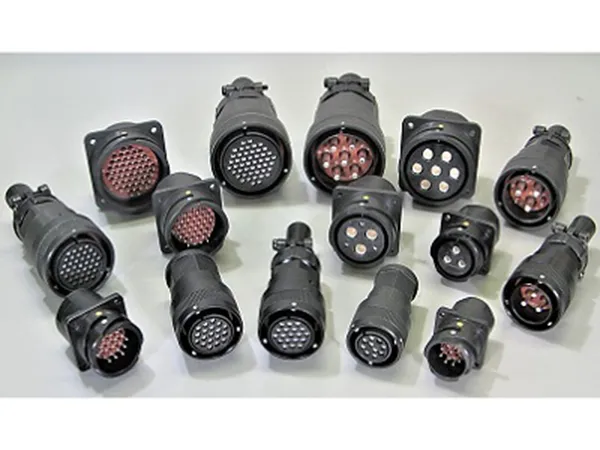

JK06 Series (VG95234 Qualified Waterproof Circular Connector)

JK06 Series (VG95234 Qualified Waterproof Circular Connector)

VG95234 Qualified Circular Waterproof Connector

The JK06 Series is a waterproof circular connector developed for railway vehicles and related electronic equipment worldwide.The JK06 Series is designed in accordance with the VG95234 specifications and also compliant with NFF61-030 (French standard for rolling stock) and EN50467 (European standard for railway applications, rolling stock).The JK06 Series is also ideally suited for use in other industrial equipment applications that require a rugged and secure connection.

Features

• Mechanical designs are VG95234 (Note 1) specification compliantNote 1: VG95234 is the German circular connector specificationVG95234 connectors are popular for railway vehicles in EuropeMating type is a bayonet locking systemContact arrangement is compatible with MIL-DTL-5015Intermates with other products that are compliant to the same standards
• Protection rating is IP67 equivalent when mated (no inundation when underwater 1m for 24 hours)
• Function and performance are compliant with the following standards:EN45545-2 (2013) European standards: railway applications, fire protection on railway vehicles, requirements for fire behavior of materials and componentsEN50467 (2011) European standards: railway applications, rolling stock electrical connectors, requirements and test methodsNFF16-101 (1988), NFF16-102 (1992) French standards: railway rolling stock, burning behavior, choice of materialsNFF61-030 (1992) French standards: rolling stock, electrical connectors, generalBS6853 (1999) British standards: code of practice for fire precautions in the design and construction of passenger carrying trainsNFPA130 (2014) Standard for fixed guideway transit and passenger rail systems*Described Issued Year in Parentheses
• Compatible with conduitPlug is compatible with conduit harness assembly by attaching the conduit adapter manufactured by PMA
• Materials selected with ecological considerationCompliant with RoHS directiveHalogen-free plastic parts
• Compatible with cabtyre cableCable clamp plug enables cabtyre cable based harness assembly

Applications

Railway vehicles and related electronic equipment
