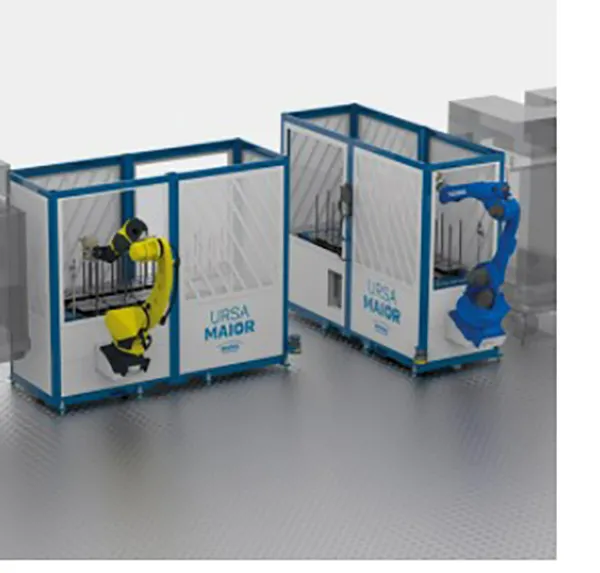

URSA MAIOR

Stackable part horizontal storage. Significant autonomy is guaranteed by the pallet rotation system on chain

URSA MAIOR is composed of a modular frame capable of accommodating up to 20 pallets (250x250 mm. base with 450 mm height load capacity), with a maximum capacity of 3300 kg. Equipped with a self-centring system on each station, it can handle a wide range of part dimensions. The large load capacity allows for excellent autonomy and warehouse loading and unloading operations can be quickly and safely completed without production downtime thanks to the photoelectric barriers incorporated in the frame. The two robot picking and placing positions are equipped with lifts complete with barrier photocells, to ensure easy handling. URSA MAIOR is able to service most machine tools and can, in turn, be moved from one machine to another.
