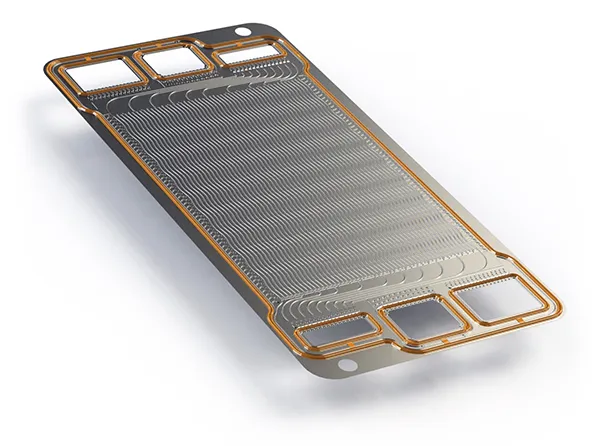

Fuel Cells Bipolar Plate
Fuel Cells Bipolar Plate
Bipolar Plates (BPPs) for fuel cells are at the heart of Hydrogen conversion into electric power. This green technology is now ready at Interplex, based on your customized designs.
A critical factor in today’s advanced fuel cells is high-volume, high-quality production of the multiple Bipolar Plates (BPP) at the heart of the energy generation process in the fuel cell system.
Fabricated from corrosion-resistant SUS316L stainless steel, the Interplex BPPs support an extensive operational lifespan of over 8,000 hours. Their ultra-low contact resistance (< 2mΩ·cm² at 1Ma pressure levels) helps to significantly boost the efficiency levels of the fuel cell stacks they are used in and enables power densities to be raised. Distributing hydrogen and air effectively and reliably, they have thicknesses down to 0.8mm without leakage of gases or coolant.
Interplex is proud to embark on a journey to zero emissions with our valued customers. With our established expertise in producing metal BPPs for top-tier customers, we are well-positioned to deliver the industry’s demands today, and tackle those of tomorrow.
Features & Benefits
High-precision BPPs with Integrated Overmolded Gasket
Only ≤8% variation in the evenness with tight tolerances of flow channel thickness (across their active area)
Improved Fuel Cell System Performance and Lifespan
Supports an extensive operational lifespan of over 8,000 hours
Material: SUS316L Stainless Steel or Similar
Corrosion-resistant materials used
Ultra-low Contact Resistance
< 2mΩ·cm² at 1Ma pressure levels - significantly boost the efficiency levels of the fuel cell stacks; enables power densities to be raised
Vertically Integrated In-house Capabilities
In-house tool design and manufacturing and FEA before design – quick turnaround time to develop prototype samples and build first test stack
Enhanced Thickness, Product Space Estate
Raw material thicknesses as low as 0.8mm with enhanced plate flatness
Supports High-Volume Operations
Scalable technology and rapid ramp-up to high-volume production of millions of BPPs yearly
Reduced Production Lead-Time
Physical Vapor Deposition (PVD) coating of plates is done 20% faster than other suppliers
