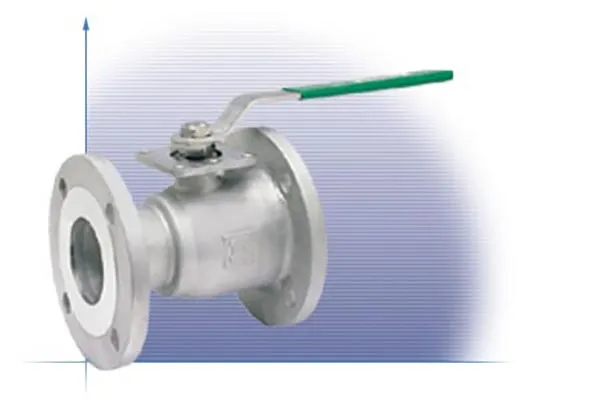

109S Ball Valve

109S Ball Valve

Features and Benefits:

• ISO 5211 Mounting PadEase of automation
• Investment CastImproves dimensional control and reduces porosity
• Live-Loaded Stem PackingProvides constant load on the stem seal and extends service life
• Blow-Out-Proof StemStem is bottom loaded to prevent removal when valve is in service

Operating / Test Conditions:

• Temperature Range (RTFE): -20� to 420� F
• Maximum Working Pressure (RTFE): ANSI 150: 275 PSI WOG @ 100� F
• All valves are shell and seat tested to ANSI/ASME B16.34 and API 598
• Length to ANSI B16.10, Connection to ANSI B16.5

Options

• Carbon Steel Construction to NACE MR-01-75
• Anti-Static Device
