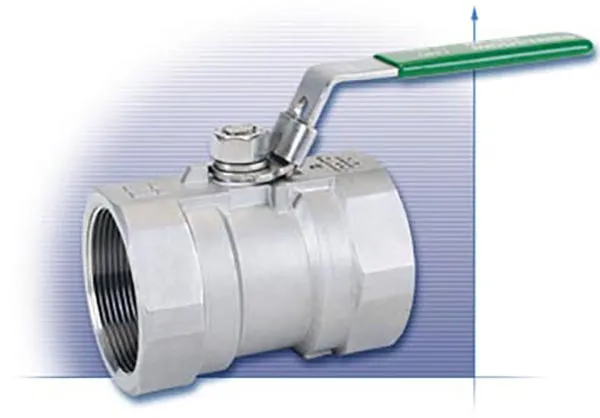

101R Ball Valve

101R Ball Valve

Features and Benefits:

• Economical 1-Piece DesignOur least expensive stainless steel ball valve
• Blow-Out-Proof StemStem is bottom loaded to prevent removal during operation
• Locking DeviceEnables plant personnel to secure valve in open or closed position when manually operated
• Corrosion ResistantMade of 316 stainless steel (A351 Gr. CF8M) for superior chemical resistance and longer service life
• Investment CastImproves dimensional control and reduces porosity

Operating / Test Conditions:

• Temperature Range (PTFE): -20� to 400� F
• Maximum Working Pressure (PTFE): 800 PSI CWP
• All valves are shell and seat tested to ANSI/ASME B16.34 and API 598

Options:

• Reverse handle
