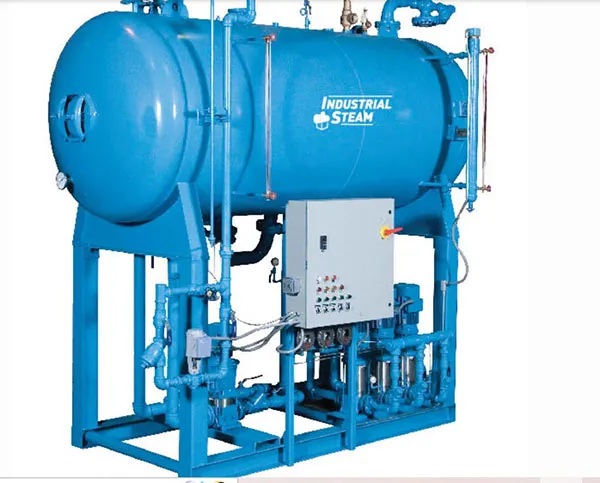

Steam Flow -005 Pressurized Deaerator

Product Overview

Features

• CONSTANT RECYCLING DEAERATOR guarantees deaeration of all dissolved oxygen in excess of .005 cc/liter from 0% to 100% of deaerator capacity
• ELECTRONIC INSTRUMENTATION FOR MODULATING DEAERATOR LEVEL control includes a HART compatible differential pressure transmitter, PID controller, and motorized control valve
• SEPARATE DEAERATING & MIXING SECTIONS offer a two stage continuous cycle which provides .005 cc/l deaerated water during all load conditions regardless of surges from the system
• ONLY STAINLESS STEEL components come in contact with undeaerated water
• A.S.M.E. CODE and NATIONAL BOARD stamped receivers at 50 psig is standard
• CUSTOM ENGINEERED PACKAGED DEAERATOR SYSTEM and low NPSH pumps require a small foot print and minimal headroom

Advantages

• Industrial Steam’s exclusive constant recycling feature, and the use of a partitioned receiver, provide the advantages of a two-tank deaerator system as a single package. These advantages are available without the necessity for onsite erection or field installed piping. Expanded deaerating sections are standard for surge condensate loads.
• GUARANTEED DEAERATOR PERFORMANCE FROM 0% to 100% of capacity regardless of load conditions is unmatched by any other deaerator. The STEAM FLOW also carries a 10-year vessel guarantee without the use of a lining.
• CUSTOM ENGINEERED PACKAGED DEAERATOR SYSTEM and low headroom with low NPSH pumps. Selection of quality components insures reliable service, and there is a single source of responsibility for all major components.
