Industrial Steam

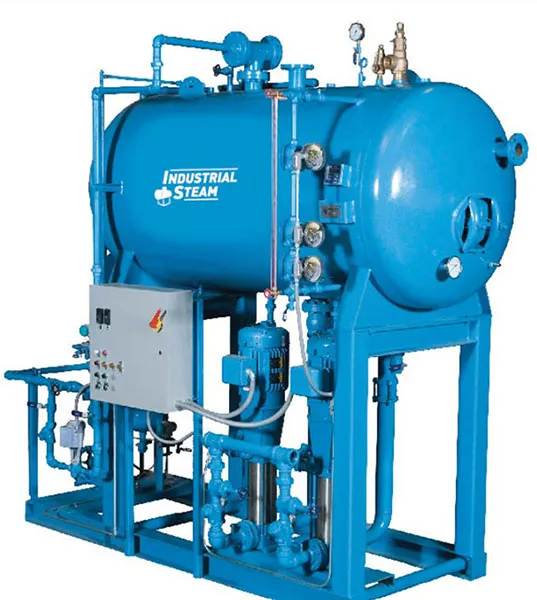

Jet Spray -005 Pressurized Deaerator

Product Overview

Features

• UNIQUE JET SPRAY scrubber design deaerator guarantees removal of all dissolved oxygen in excess of .005 cc/liter (7 ppb)
• ELECTRONIC INSTRUMENTATION FOR MODULATING DEAERATOR LEVEL control includes a HART compatible differential pressure transmitter, PID controller, and motorized control valve
• MULTIPLE DEAERATOR CONFIGURATIONS: vertical or horizontal vessels provide maximum flexibility using minimum footprint
• ONLY STAINLESS STEEL components come in contact with undeaerated water. Deaerator spray nozzle, scrubbing section and internal vent condenser are all stainless steel
• A.S.M.E. Code and National Board stamped receivers – 50 psi standard vessel options include stress relieving, non-destructive testing and full vacuum
• CUSTOM ENGINEERED PACKAGED DEAERATOR SYSTEM includes boiler feedwater pumps and quality components to insure reliable service

Advantages

• The Jet Spray deaerator provides excellent performance utilizing the high velocity incoming steam to atomize makeup water and pumped returns. Stainless steel internal components provide reliable performance for many years. This superior spray-type design directs the cleanest incoming steam to scrub out the last traces of oxygen from the cleanest water
• GUARANTEED DEAERATOR PERFORMANCE .005 cc/liter per ABMA testing procedures. Standard sizes ranging from 6,900 lbs/hr to 300,000 lbs/hr
• CUSTOM ENGINEERED PACKAGED DEAERATOR SYSTEM results in a small foot print, minimal onsite installation costs, and a single source of responsibility for all major components
