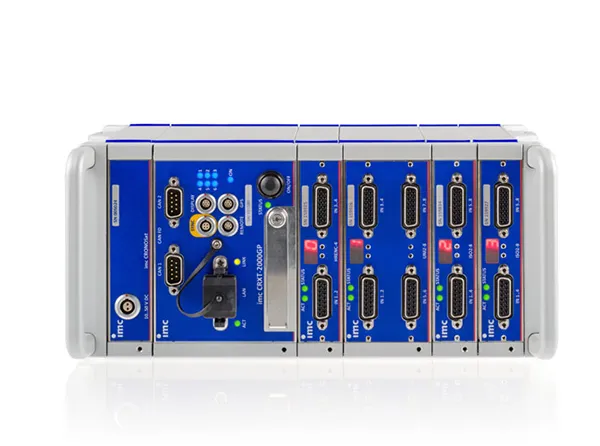

imc CRONOS-XT

imc CRONOS-XT

Robust data collection with a click

No more compromises: With imc CRONOS-XT, imc offers ultra-robust device technology in a fully modular platform. The data acquisition unit and measuring amplifier can be conveniently connected to form a complete system using a click mechanism, without the need for tools or cables. With protection class IP67 and MIL-STD810F, the system is protected against dirt, dust and rain as well as against strong vibrations and shock. The robust data logger is therefore ideal for mobile measurements on construction machinery, tractors, agricultural machinery and vehicle tests that take place in harsh environments.

More flexibility in everyday measurement

Is an 8-channel vibration measurement due today? Then simply click the ICP measurement module onto your base unit and off you go. And tomorrow? Thanks to the modular building block technology, imc CRONOS-XT can be adapted to any pending measurement task in just a few minutes. A wide range of high-precision universal and special measuring amplifiers covers almost all sensor types such as thermocouples, RTD (PT100/1000), voltage and current signals, acceleration and sound sensors (IEPE), displacement transducers (LVDT) through to strain gauges as full /half/quarter bridges and corresponding bridge sensors such as load cells (load cells). The precise and low-noise measuring amplifiers digitize with 24 bits and have a high bandwidth and dynamic range.

Extremely robust data acquisition system

• Waterproof and dustproof according to protection class IP67
• High vibration and shock resistance according to MIL-STD-810F
• Robust and shockproof housing
• Sealed electronics (dew point proof)
• Wide temperature range from -40 °C to +85 °C
