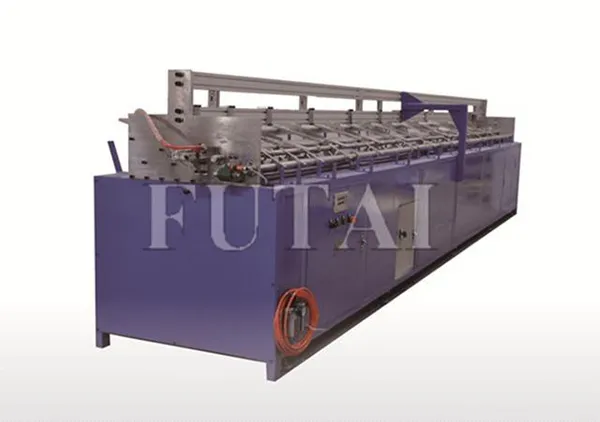

TL-312 Feeding And Testing Machine

Tongli Machinery TL-312 Feeding and testing machine is a special machine for testing the voltage and feeding tube automatically. The machine has the advantages of simple operation,ability to test and separate automatically and no need for human monitoring all the time. It is feeding by belt,while the TL-107 Feeding and testing machine is feeding by chain.

*Labour saving/efficient operation.

*Reliable and flexible feeding.

*Feeding by belt.

*Save tubes.

Functions:

•  PLC control. It feeds the heating elements with a consistent space between them.
•  Easy operation and no need for operator.
•  Tests the high voltage of heating elements and separates the bad product automatically.
•  Feeding speed can be adjusted.
•  For tube length over 2meters.

Main technical parameters:

•  Power supply: Single phase 220V 50Hz 60W.
•  Air supply: 5-7kg/cm2.
•  Feeding speed: 5-15m/min.
•  Tube diameter: 6.5mm-21.0mm.
•  Tube length: 100mm-1500mm.
•  Packing size (L*W*H): 3360*960*1500(mm) (tube length2.5meters).
•  Gross weight: 450kg.
