Horizontal Water Heater Products

Horizontal Water Heater Products

Description

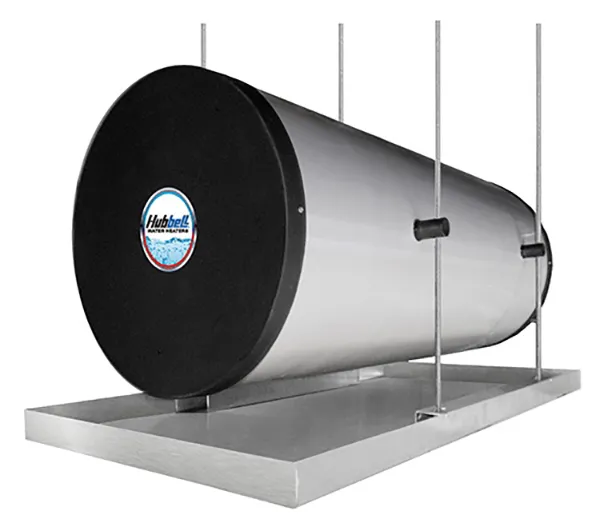

Today's design requirements put a premium on floor space for many commercial applications. The Hubbell HE and HSE model horizontal water heaters specifically address the concern of utilization of space by providing a horizontal water heater for installation above a drop ceiling. The integrally welded mounting assemblies are designed for quick and efficient job site installation without the need for cumbersome and expensive structural platforms. This design, in conjunction with the superior characteristics of a Hydrastone cementlined tank, gives you the confidence in knowing that when you specify and install a Hubbell water heater, the owner will be provided with a quality product that is a long lasting and trouble-free source for hot water.

Features

Space Saving Design

• Horizontal ceiling hung tank requires minimal clearance and no floor space
• Simple tie rod installation eliminates expensive and cumbersome mounting shelves

Heavy Duty Construction

• lining provides long tank life
• High impact composite jacket cannot rust or corrode and eliminates damage during transit and installation

Reliable

• Full range of sizes to meet your exact heating needs
• Immersion adjustable thermostat provides accurate temperature control
• Full five (5) or ten (10) year Non Pro-Rated tank warranty

STANDARD EQUIPMENT

• 1/2" thick Hydrastone cement lining
• Four (4) integrally welded factory installed mounting assemblies
• Magnetic Contactor on HSE model only
• Commercial grade immersion heating element
• Immersion thermostat (100-180°F Range)
• Surface type safety hi-limit cut out with a manual reset button (190°F)
• ASME temperature and pressure relief valve set at 150psi and 210°F
• 2" thick Polyurethane foam insulation meets or exceeds the requirements of ANSI/ASHRAE/IESNA 90.1
• High impact non-corroding colorized composite protective jacket
