Description

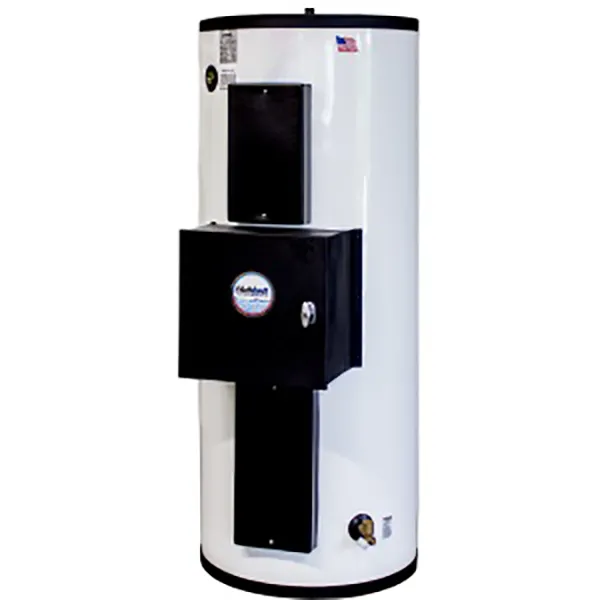

The Hubbell Model SE commercial electric water heater incorporates a number of features not found in other conventional heaters which makes it better suited to resist the highly corrosive effects of hot water. The heart of a Hubbell water heater is a superior storage vessel which utilizes a specially formulated Hydrastone cement lining, solid copper-silicon threaded tank openings and a built-in trap device, all of which ensure a longer lasting and energy efficient water heater.

When you specify and install a Hubbell Model SE, you will have confidence in knowing that the owner will be provided with a long lasting, trouble-free source for hot water.

Commercial Electric Water Heating Features

Heavy Duty Construction

• Hydrastone cement lining provides longer tank life
• Copper-silicon alloy tappings cannot rust or corrode
• High impact composite jacket cannot rust or corrode and eliminates damage during installation and transit

High Efficiency

• Polyurethane foam insulation reduces heat loss
• Built-in heat trap lowers operating costs

Wide Selection

• Built to meet your exact needs
• Numerous options available for specialized applications

Reliable

• Full five (5) year Non Pro-rated tank warranty is standard
• Full ten (10) year Non Pro-rated tank warranty can be specified for extended protection

Standard Equipment

• 1/2" thick Hydrastone cement lining
• Non-ferrous solid copper-silicon threaded openings for maximum corrosion resistance
• Magnetic contactor(s) are heavy duty resistive load type rated for 200,000 cycles
• Incoloy sheathed immersion heating elements
• Built-in heat trap to improve operating efficiency (3/4" inlet/outlet models only)
• Surface thermostat 110-170°F range
• Immersion thermostat (100-190°F) furnished as standard when required due to high recovery versus storage ratio
• On 6-30 gallon heaters 5 KW and above
• On 40 and 50 gallon heaters over 8 KW
• On 65 gallon heaters over 12 KW
• On 80-119 gallon heaters over 15 KW
• Surface safety hi-limit cut out with manual reset button (190°F)
• Immersion safety hi-limit cut out with manual reset button (Standard on heaters 45 KW and above)
• 1 1/2" Male NPT inlet/outlet connections (Standard on heaters 45 KW and above)
• ASME/CSA rated temperature and pressure relief valve set at 150 psi, 210°F
• 2" thick polyurethane foam insulation
• High impact non-corroding colorized composite protective jacket
• Cold water inlet diffuser with drain valve
