Chevron Conveyor Belts

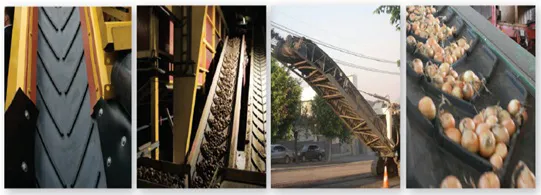

Chevron conveyor belts are required when higher angles of inclination are required. HYC has developed high-performance and high-quality chevron conveyor belts. We are one of the well-know conveyor belt manufacturers in Taiwan. Chevron conveyor belts are designed for inclined transportation for conveying bulk material such as coal, crop, sand, mineral, package, and bag depending on different loading material and inclined angle to select suitable cleat height and chevron type of prevent loading material from dropping down. Types of chevron conveyor belts include 6mm, 12mm, 15mm, 16mm, 25mm, and 32mm cleat height. Chevron conveyor belts contain excellent physical property or rubber, high adhesion, and fatigue resistance.

Features include:


  • Integrated vulcanized cover and cleat rubber prevent the chevron belt cleat from coming off.
  • Better cleat rubber property and abrasion extend the service life of conveyor belt.
  • It is adjustable design for various chevron conveyor belts by incline angle from range of 16° ~ 45°.
  • Excellent drainage character.
