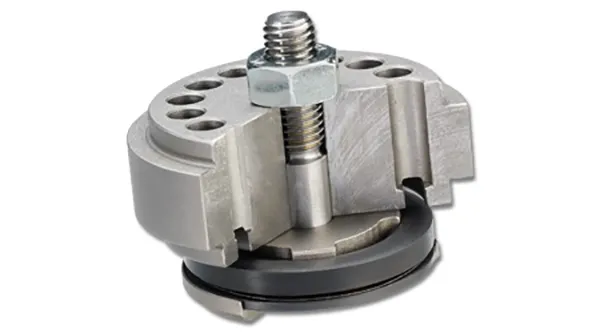

HPV valve
HPV valve
For maximum pressures and difficult conditions
- Low flow losses
- Non-metallic valve ring with superior damping properties
- Temperature resistant up to 300ºC (572ºF)
The HOERBIGER HPV valve is specifically designed for use under difficult conditions. Whether the use involves chlorine, hydrocarbons, hydrogen, noble gases or methane – the HPV valves satisfy virtually all the requirements of the natural gas, chemical, petrochemical and pharmaceutical industries as well as of the food and electronics industries. The wide range of uses includes reciprocating and diaphragm compressors as well as cooling equipment, for example for cooling the gas of turbo-generators or for mixing gases.
High pressures, operation without added lubrication or high temperatures do not impair the function of the valve. The profiled valve ring made of the carbon-filled, high-temperature-resistant and non-metallic synthetic material polyetherketone (PEK), which has a melting point of higher than 370ºC (698ºF), allows the valve to be used at an operating temperature as high as 300ºC (572ºF). The maximum pressure is 800 bar and, depending on the temperature, the differential pressure ranges between 200 and 400 bar.
HOERBIGER HPV valves are available in graduated diameters from 19 to 57 mm (0.75 to 2.24 inches) and depending of the model, the valve lift, together with the spring plate produced from wear-resistant spring steel, varies between 0.6 and 2.0 mm (0.02 and 0.08 inches). This makes the robust valves suitable for compressors with rotational speeds of up to 1800 rpm. The material selection and design are based on the higher benefit for the customers.
Technical Data
|
HPV Valve
|
from
|
to
|
|
Maximum Pressure
|
|
800 bar
|
|
Pressure Differential
|
|
400 bar
|
|
Temperature Range
|
-20°C (-4ºF)
|
+300 °C (+572ºF)
|
|
Rotational Speed
|
|
1800 rpm
|
