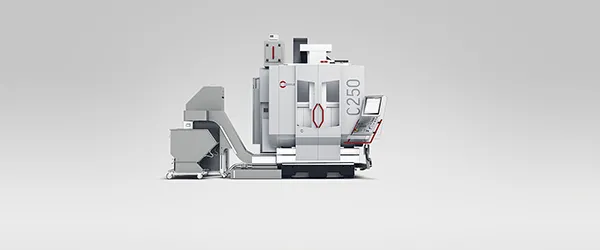

C 250 Machining Centre
C 250 MACHINING CENTRE
C 250 machining centre – the applications
HERMLE PERFORMANCE-LINE
Within the model range, the C 250 can be seen as the entry-level model for 5-axis milling – and for the Hermle Performance-Line. Thanks to the wide-reaching swivelling range of the workpieces in the working area, the exploitation of the full traverse range and the large collision circle between the table sections, the C 250 has the largest working area in relation to the installation area. And it is constructed for everyday use: The application video shows the Hermle C 250 U in the 5-axis version machining a Rockerbox in Toolox33 for vehicle technology.
Insights into the C 250
Maximum precision thanks to the Hermle swivelling rotary table concept. The machining table has a large worm drive. On the A axis you can directly access the gearwheel on the table housing. You can discover more details about the C 250 for 5-axis milling via the i-buttons in the 360 degree view.
Entry level for 5-axis milling
ENTRY LEVEL FOR 5-AXIS MILLING
|
Dimensions
|
|
Traverse path: 600 x 550 x 450 mmBody: dia. 450 / H 355Collision circle: dia. 770 mmMax. vertical tableclearance: 550 mm
|
|
Facts
|
|
Speed: 15000/18000 1/minRapid traverse linear X-Y-Z: 35 m/minRigid clamping table: 800 x 616 mmmax. table load: 1100 kg
|
TOOL SPINDLES
HIGH-TECH TOOL SPINDLES WITH COLLISION PROTECTION
Like the swivelling rotary tables, the tool spindles are also completely manufactured in-house at the Gosheim site. The slimline tool spindles are constructed in two parts and can be replaced easily and quickly during servicing. Thanks to low interfering edges and collision protection by compression sleeves, safety is given primary importance by maximum collision avoidance. Damage can be prevented in 50 % of collisions.
FROM A TO Z
Automatic cabin door, BDE-signal, emulsion mist extraction system, height-adjustable control panel, rotating visibility improvement unit, chip conveyor, coolant nozzle and chip cart, tool breakage monitoring and measurement, additional magazines …
ENERGY EFFICIENCY
IN MANUFACTURING AND OPERATION
Hermle manufactures many components using lightweight construction and mineral casting technology. The high degree of own production, local suppliers and components with high efficiency factors also promote energy efficiency. Energy recuperation, high-quality servo drives and the legendary long service lives are all proof of the same high standards during actual operation.
