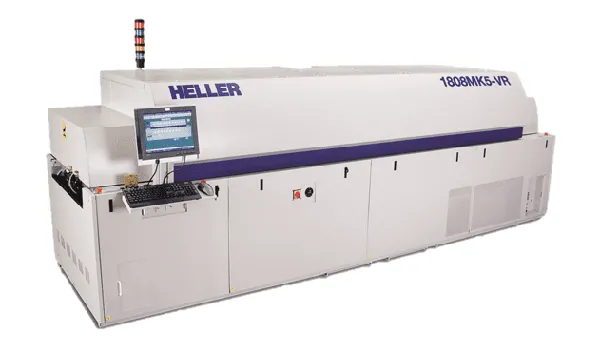

The 1808MK5-VR consists of 7 convection zones and 3 IR zones providing 273cm (107”) in heated length with minimal floor space. Rapid response times and precise temperature controls assure process uniformity, regardless of component density or board loading, with identical profile performance in either air or nitrogen.
Oven Length465cm
Process Gas OptionsAir, Nitrogen, Formic Acid, forming gas
Heated ZonesConvection: 7 Top / 7 Bottom IR: 3 Top
Heated Length (Convection/Total)174 cm / 273 cm
Cool Zones2 Top (Bottom Option)
Max Working Temperature (Convection / IR)Standard: 350°C / 400°C, Option: 400°C / 480°C
Min VacuumStandard: 10 Torr Option:
Max Board Size500mm (L) x 450mm (W) x 29mm (H)
Cleanroom OptionDown to Class 1000
