Helix Linear Technologies

Product Family

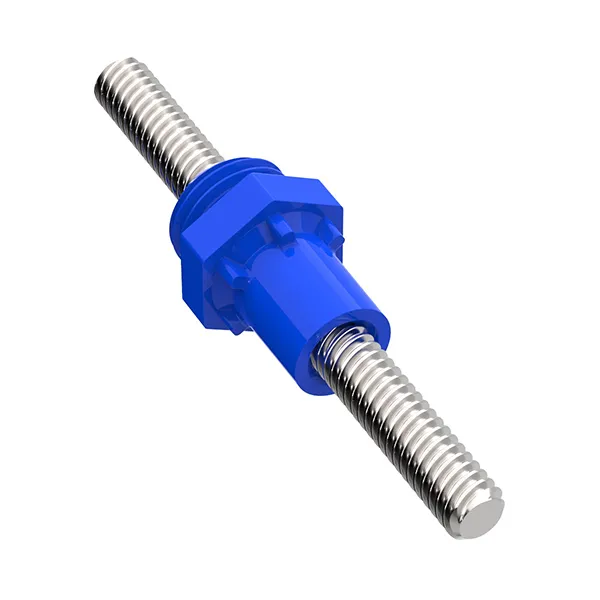

NTA - Freewheeling Threaded

Metric Or Imperial

Imperial

Anti-backlash - Y/N

No

Flanged Or Threaded Mount

Threaded

Thread Direction

RH

Material

Acetal

Lead [in] {.0000}

0.0394

Starts

1

Pitch [in] {.0000}

0.0394

Diameter [in] {.000}

0.125

Diameter Code

12

Lead Code

39

Torque to Raise 1 lb. [in-lb] {.000}

0.015

Flange Part Number

n/a

Flange Weight [lb] {.00}

n/a

Nut Weight [oz] {.00}

0.064

Efficiency [%]

35-52

Dynamic Load Capacity [lb]

35

Static Load Capacity [lb]

175
