Helix Linear Technologies

Product Family

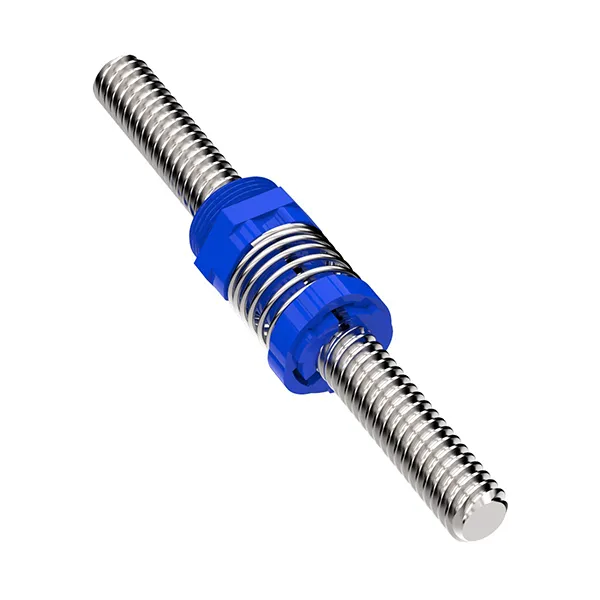

RTA - Radial Anti-Backlash Threaded

Metric Or Imperial

Metric

Anti-backlash - Y/N

Yes

Flanged Or Threaded Mount

Threaded

Thread Direction

RH

Material

Acetal

Lead [mm] {.0000}

20

Starts

16

Pitch [mm] {.0000}

1.25

Diameter [mm] {.000}

6

Diameter Code

24

Lead Code

787

Torque to Raise 1 lb. [nm] {.000}

0.163

Flange Part Number

n/a

Flange Weight [kg] {.00}

n/a

Nut Weight [kg] {.00}

0.22

Efficiency [%]

69-86

Dynamic Load Capacity [kg]

14

Static Load Capacity [kg]

550
