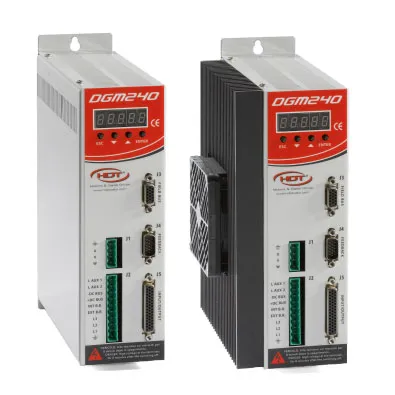

Brushless Drives-DGM240
Sinusoidal digital brushless servo drive in highly compact stand-alone single-axis version with input from 150 to 240 V AC or DC bus for the control of sinusoidal-type brushless servo motors equipped with resolvers of up to 15 Nm torque.
Structure: Intelligent shape thanks to compact size and connections only on the front that make the design and construction of the control panel easier with better access for assembly and maintenance and optimized space with a general reduction of overall dimensions.
Hardware: Complete with built-in feeder, breaking resistance* and circuits, and EMC filter**. The power stage is made with intelligent power IGBT.
Simple to use with either onboard numerical keypad or software Accord® for interface between PC and drive.
Modbus, Profibus or CANOPEN DS402 communication protocol via RS485.
Software: Equipped with control software applications such as multi-positioners, electronic cams, electric axes, and flying shear controls, these drives find particular applications in market sectors that demand high response speed and extreme precision like packaging, food processing, flexographic printing, woodworking, textile, printing, and glass/marble working machines and robots, etc.
