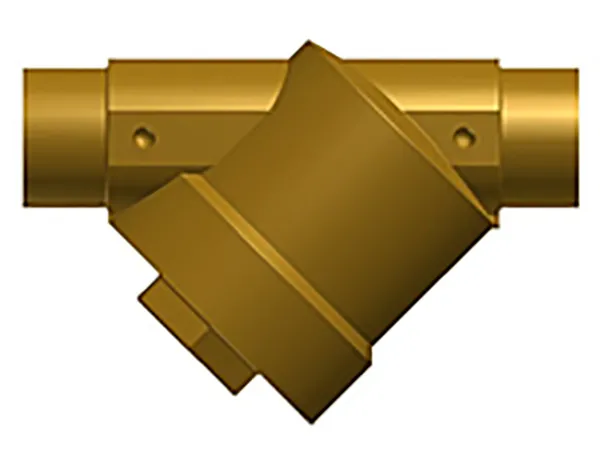

Model 2517 Mesurflo® Y-Body Automatic Balancing Valves

Model 2517 Mesurflo® Y-Body Automatic Balancing Valves

Standard Features:

• FSWT Outlet / Inlet Connections
• Changeable GPM Flow Cartridges
• Differential Operating Pressure: 2-80 PSID 0.50-5.00 GPM, 3-80 PSID 5.50-9.00 GPM
• ± 10% Accuracy
• Operating Temperature Range 32ºF to 225ºF
• Valves Labeled with Model No., Size & Flow Rate
• Valve Body Suitable for 600 PSIG
• Available in Lead Free Version (NSF/ANSI 61, 372 Certified) for Domestic Hot Water Applications - Consult Factory
