HAYS FLUID CONTROLS

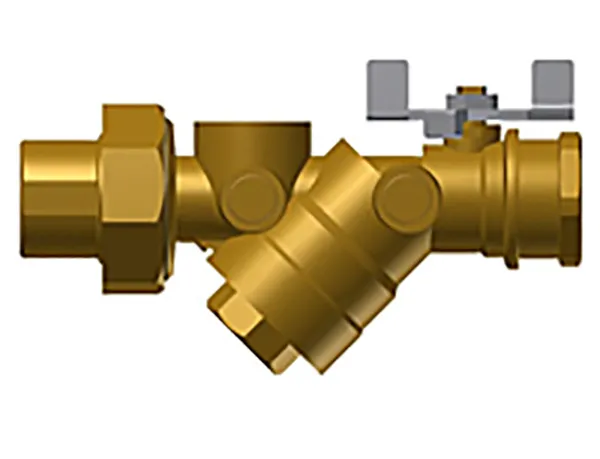

Model 2514 Mesurflo® Y-Ball Automatic Balancing Valves

Model 2514 Mesurflo® Y-Ball Automatic Balancing Valves

Standard Features:

• FNPT, FSWT and MNPT Outlet / Inlet Connections
• Changeable GPM Flow Cartridges
• Differential Operating Pressure: 2-80 PSID 0.50-5.00 GPM, 3-80 PSID 5.50-9.00 GPM
• ± 10% Accuracy
• Operating Temperature Range 32ºF to 225ºF
• 1/4" Pressure / Temperature Ports
• Short or Lever Handle
• Right or Left Hand Porting
• Inlet and Outlet Port Options
• Valves Labeled with Model No., Size & Flow Rate
• Dryseal Pipe Threads
• Valve Body Suitable for 600 PSIG
