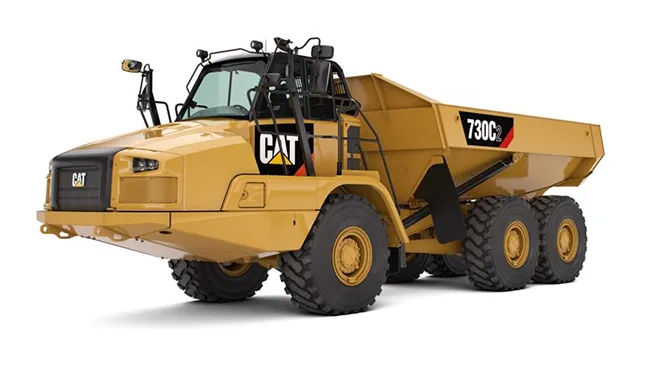

730C2 Articulated Truck
Engine
Transmission
Automatic Features
Suspension And Braking
Operator Environment
Ease Of Operation
Durability And Reliability
Cat Connect Technology
Serviceability
Complete Customer Support
Sustainability
Safety
STANDARD EQUIPMENT
- Air conditioning with R134A refrigerant
- Adjustable air vents
- Auto shift six-speed forward and single speed reverse transmission
- Cat C13 ACERT engine
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Cat rearview camera
- Color Multi-Purpose Display (CMPD) incorporating the rearview camera feed
- Dashboard Liquid Crystal Display (LCD)
Alert indicator, selected gear and direction, speed or auto shift, review Operation and Maintenance Manual (OMM), primary steering failure, seat belt warning, secondary steering failure, Machine Security System (MSS), secondary steering energy source engaged, hour meter and retarder active
Differentials: automatic clutched inter and cross-axle differential locks
Dual circuit oil immersed, enclosed brakes – all wheels
Electrical system: 24 volt, 5A 24- to 12-volt converter
Electro hydraulic hoist control
Glass windows: laminated front, toughened rear and toughened opening side
Guards: rear window, radiator, crankcase and axle
Heater and defroster with four-speed fan
Horn: electric
Lights: cab interior, front, width marker, side, rear, two reversing/work lights, two stop/tail lights, front and rear direction indicators
- Machine Operation Monitoring System includes
Action lamp, engine oil pressure, primary steering system, left turn signal, high beam, coolant temperature, tachometer, parking brake, fuel level, right turn signal, transmission oil temperature, brake system, transmission hold, hoist control, hydraulic system, charging system, retarder, transmission fault, traction control system, check engine lamp
Mirrors: extensive arrangement for improved visibility
Mud flaps: wheel arch and body mounted with transportation tiebacks
Product Link PL 321 or PL 522 dependent on location and licensing agreement
Retarder: engine compression brake
Reverse/backup alarm
ROPS/FOPS cab
Seat, fully adjustable, air suspension
Seat, padded companion/trainer
Secondary steering – electro hydraulic
SOS sampling valves
Spill guard: front, integral part of fabricated body
Starting receptacle, electric, remote
Storage: cup holder, under seat, door pocket, behind seat, coat hook
Sun visor
Three axle, six-wheel drive
Tilt and telescopic steering wheel
Tires, six 23.5R25, radial
Two retractable seat belts
Vandalism protection: lockable caps for fuel tank, DEF tank and hydraulic oil tank
Windshield wiper and washer, two speed, intermittent (front)
Optional Equipment
OPTIONAL EQUIPMENT
- Auto lube installation for automatic greasing of bearings
- Body liners
- Bluetooth radio stereo system
- Caterpillar Production Measurement (CMP) payload monitoring system
- Cold weather coolant –51° C (–60° F)
- Cold weather start attachment
- Engine block heater
- Bare Chassis (no body) standard wheel base
- Bare Chassis (no body) long wheel base
- Ether start
- Exhaust heated body
- Fast fuel fill
- Flashing LED beacon
- Four-point safety harness
- Fuel additive-anti-waxing
- Heated seat
- Heated rearview motorized mirrors
- Machine Security System (MSS)
- Product Link PL 321, PL 522, VIMS™ Cellular, VIMS Satellite (where available)
- Roof mounted High Intensity Discharge (HID) work lights
- Scissor tailgate
- Windshield wiper and washer, two speed (rear)
- 750/65 wide tires
