Hawker Siddeley Switchgear Ltd

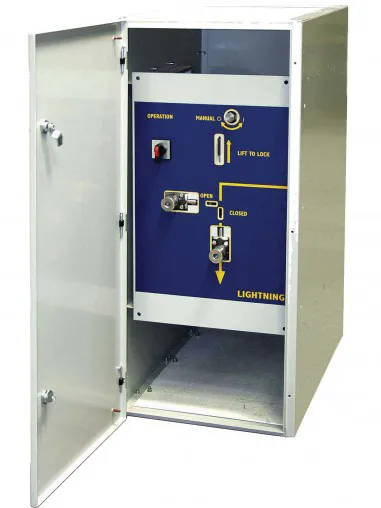

LIGHTNING NDCD DC SWITCHGEAR

LIGHTNING NDCD

Following the successful launch of the Lightning DC switchgear product, we have extended the DC product range with the introduction of a DC disconnector solution for DC traction applications - the Lightning NDCD off-load disconnector.

Features

Offered in a range of current ratings, this new DC disconnector can be incorporated within the Lightning DC switchboard, or supplied loose within free-standing or wall mounting enclosure(s). Available in both 2-position (on/off) and 3-position (changeover) options, the NDCD utilises the superior technology used in the NDC circuit breaker, addressing the number of problematic factors associated with past DC isolators.

• Specifically designed for DC applications, rather than converting an existing AC isolator

• Compact design

• Can be configured either as an isolator or as a changeover switch

• Very low resistance – typically 5 µΩ for entire switch

• Ability to withstand very high short circuit currents (It has been tested up to 183kA)

• Big isolating gap

• Can be manually or motor driven, or both

• Available as component or mounted in enclosure
