Hawker Siddeley Switchgear Ltd

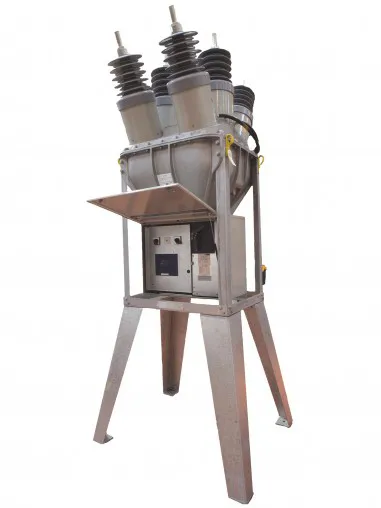

HORIZON OUTDOOR SWITCHGEAR

HORIZON

One of our Fit & Forget family of products, featuring one of the most advanced operating mechanism available on the market today – the award winning magnetic actuator technology, the Horizon fills the need for outdoor, ground-mounted or pole-mounted circuit breakers.

Designed for a 38kV application, the Horizon can be used with other products from Hawker Siddeley Switchgear to provide cost-effective and compact substations or breathe new life into existing substations by replacing old and obsolete equipment.

Features

Designed for a 15kV or 38kV application, the Horizon can be used with other products from Hawker Siddeley Switchgear Ltd to provide cost – effective and compact substations or breathe new life into existing substations by replacing old and obsolete equipment.

• Superior, proven Fit & Forget technology with minimal maintenance

• Vacuum interruption in an SF6 filled, controlled environment (1.5 bar absolute)

• Dead tank construction suitable for both live or dead tank applications

• Internal arc containment

• Generous CT accommodation

• The lightweight aluminium tank makes the Horizon easier to transport and install

• The silicone rubber bushings are resistant to damage from vandalism or mishandling and have an extended creepage of 1500mm

• Cubicle with space for ancillary equipment an option for integrated control and protection relay

• Optional Adjustable Legs version
