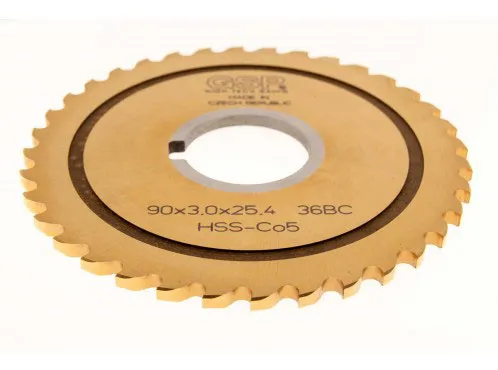

Slitting saw DIN 1838 C

Materials: steel, cast, non-ferrous metals

Application: recommended for slotting and cutting materials which make longer chips, suitable for cutting thick-walled profiles (wall over 2 mm)

Machine: metal processing machines

Characteristic:

• HSS circular saw blades with rought teeth

• hollow ground with flange, standardly produced without driving pin holes and without groove

• the C tooht form consist of roughing teeth and finishing teeth

• the roughing tooth is chamfered from both sides and in its cutting part it is 0,15- 0,30 mm wider than the finishing one; the chips are cut into three parts and that´s why their removing is much more efficient

• hollow ground according DIN 1840

• High quality slitting saw 1838 C, designed especialy for high performance. Slitting saws produced in Europe - Czech Republic.

The teeth consist of roughing teeth and finishing teeth. The roughing tooth is chamfered from both sides and in its cutting part is 0,15 - 0,30 mm bigger than the finishing one. Chips are cut into three parts and that´s why their removing is much more efficient. Perfect breaking prevents from blocking the cutting area and avoids poor tool life or even tool breakage due to the tooth clogging. It is recommended to cut solid materials.
