Great Lakes Data Racks & Cabinets

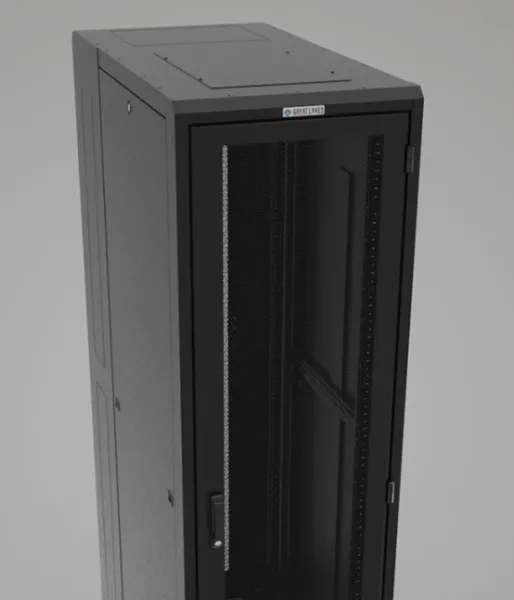

Standard Cabinets -ES

PRODUCT OVERVIEW

THE MOST CONFIGURABLE CABINET FOR EVOLVING DATA CENTER NEEDS

Future-proof platform to facilitate evolving data center needs

Choose popular configurations or configure a cabinet with 3,000 variations

• Power: Dedicated space in the rear of the cabinet to install PDUs, including PowerLok from Great Lakes; PDUs install on standard button mount brackets (included with every ES frame); additional mounting available
• Airflow: Versatile to support aisle containment, localized containment (exhaust chimney), containment pods, etc.
• Connectivity: Integrated and optional accessories to support low-to-high density cable applications in and out of the cabinet
• Security: Optional cabinet components and access control creates a SEAL solution that deters and delays physical threats
• Flexible Mounting Profile: FMP, holes along the rail for zero-U accessory mounting
• Fully welded frame made with North American steel for superior strength
• Mounting rails support max static weight capacity of 4000 lbs. (3300 UL rating)
• Levelers included with every configuration; optional non-locking casters available
• Color: Black, Winter White
• Standards: UL2416, RoHS II
