Great Lakes Data Racks & Cabinets

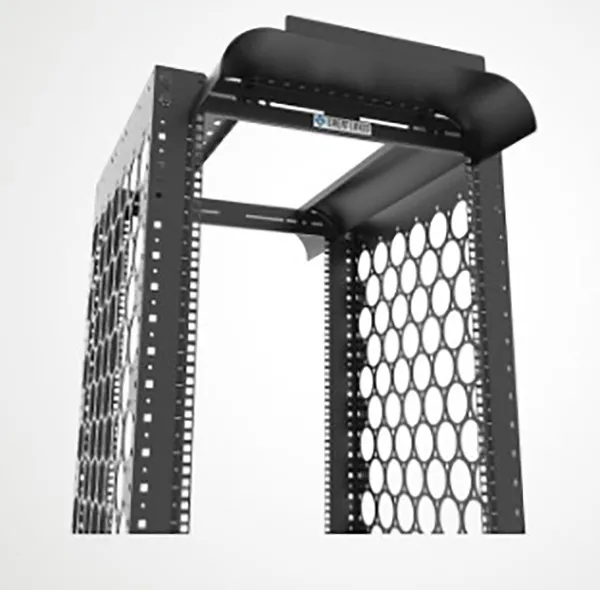

Premium Racks CMRX

PRODUCT OVERVIEW

UNMATCHED ON-BOARD CABLE MANAGEMENT SUPPORT

• #12-24 tapped channels (with RMU markings) for 19″ and 23″ mounting
• Cable management pattern of 2.75″ circles on 3.25″ staggered centers allow for unlimited cable attachment points; square hole pattern between centers accept ¼ turn D rings; 20 rings included, 3.5″ x 5″
• Square hole pattern and FMP pattern along the front and rear face of channels accept D rings and fingers for horizontal cable support
• Four top waterfall brackets with 3″ bend radius; two fixed, two adjustable
• Cable runway or basket tray can rest directly on top of the rack or can be supported by optional ladder rack brackets
• Self squaring assembly with toe-in or toe-out orientation (Overall depth listed below is with toe-out footprint)
• Color: Black, Winter White
