GORGY TIMING

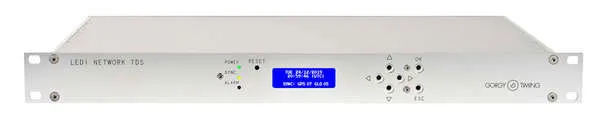

LEDI NETWORK TDS

LEDI NETWORK TDS

Internal Time Base

LEDI® NETWORK Time Distribution Server (TDS) is equipped with internal time base allowing accurate timekeeping in case of loss of synchronization.

• TCXO Frequency stability: 2.10-8 (0°C to 55°C) Ageing: 1,5.10-9 / day

Security

• Backup of configuration setting in flash memory
• Supervision via SNMP V3 or supervision software GT Supervision
• Remote configuration via secured web page
• Configuration setting command prompt via SSH
• Firmware update via FTP or SCP
• Compatible IP v4/v6 (compatible DHCP v4/v6)
• Configuration on Web interface via HTTP et HTTP(s)
• Supporting NTPv4
• Network communication ports can be disabled

Key features

• Plug and Play
• 1 NTP server output included in the default configuration
• Multiple synchronization outputs of different types of time codes
• Alarm management via SNMP TRAP (V1, V2C and V3)
• Time base and algorithm to ensure output accuracy
