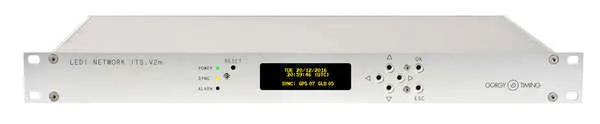

LEDI NETWORK ITS v2m

LEDI NETWORK ITS v2m

Synchronisation inputs	GNSS, GPS, NTP, IRIGB, ASCII+TOP, Fréquence, SCPTime®*
Quartz	OCXO (1.10-10) TCXO (1.10-8)
Available output time codes	IRIG-B, PTP, NTP, multi-protocol ASCII, PPS, 10MHz, SMPTE-EBU, Configurable Tops, DCF 24v pulse
Maximum number of inputs	3

Key features

Power Supply Redundancy 18-36 or 36-72 VDC with 110-250 VAC
Configurable priorities of synchronization inputs.
Compensation of input delay due to transmission distance and threshold setting for security
Time Base and algorithm ensuring output accuracy up to 50ns when synchronized to GPS/GNSS
Multiple synchronization outputs of different types de time code
Time can be configured individually on each output, via DST and Offset
PPS and 10Mhz output (available with OCXO oscillator only) via BNC connectors.
Alarm management via SNMP TRAP and two static relay outputs on screw terminal for synchronization and power supply alarms
Manual or automatic adjustment for transmission delay.
System Event Journal.
Operational within 1 minute.
Local or UTC time on the digital display
Configurable dry contacts to loss of synchronization or power supply alerts
