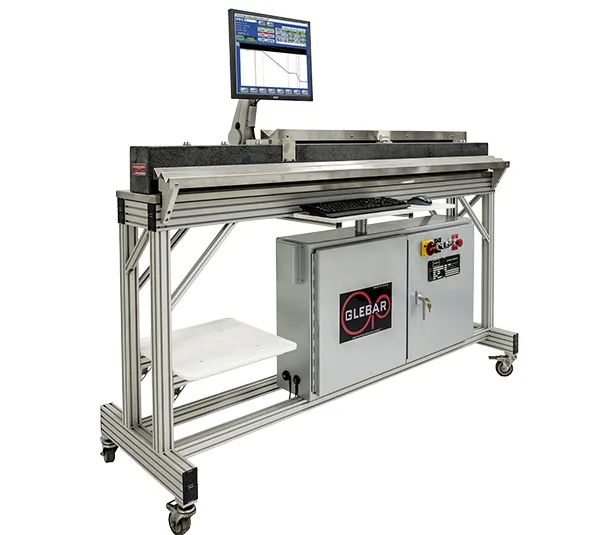

Gauging System P4K
The fastest and most accurate profile metrology system available for long parts or multiple short parts. The P4K's strongest feature is the ease of use by line operators -- it is able to scan multiple single parts or one long part in one operation.
Introducing the P4K
- The P4K represents the culmination of years of experience in understanding the unique challenges and requirements in measuring long cylindrical shapes in a manufacturing environment.
- Capable of scanning geometric profiles accurately at up to 3 inches/sec (75mm/sec) the P4K was designed to eliminate the production bottleneck caused by inspection on the floor. By employing a simple user interface, inspectors and machine operators can quickly determine product quality on the manufacturing floor.
- The P4K provides quality managers enough analysis data and traceability to comply with the most stringent quality requirements.
- The P4K utilizes the latest in high-speed, high-accuracy optical micrometer technology, combined with a unique linear motor design and a high speed real-time data acquisition setup.
P4K Highlights
Scan Multiple Single Parts or One Long Part in One Operation
By pulling the product through a laser gauge using a high precision linear stage and matching diameter and length readings in real time at a rate of 10,000 readings per second, the P4K can provide diameter and length readings every 30 millionths of an inch, resulting in superior gauge repeatability and reliability.
Setup Reduction or Closed-loop Quality Control
On the GT-610 CNC machine, the P4K serves as a setup reduction device while providing feedback of the entire component geometry for all parts in a cycle to automatically correct the grinding wheel dress shape (correcting the wheel dress shape from any measurement device is patent-pending). For other compatible Glebar machines, (GT-610, GT-610 SD, CAM.2 and GT-9AC) the P4K serves as a closed-loop quality control device that feeds back diameter to the control system for automatic size compensation.
Simple to Use Interface
The GO/NO GO result is derived automatically as the system locates transition points on the scan.Using an optical micrometer with no moving parts ensures stable calibration and no deterioration of diameter readings over time, the P4K is configured for long-term, worry-free operation. Designing a template for inspection is as simple as picking points on a graph. The GO/NO GO result is derived automatically as the system locates transition points on the scan
Remote Connectivity
Remote connectivity simplifies troubleshooting and maintenance.
Key Features
- The P4K metrology device scans and provides feedback of the entire component geometry for all parts in a cycle to automatically correct the grinding wheel dress shape (correcting the wheel dress shape from any measurement device is patent-pending). This is done in a matter of seconds, drastically reducing setup time and improving quality control.
- Simple and easy-to-use software
- Results are presented to operators as a clear GO/NO GO
- Fast scanning - even minute defects are clearly visible and measurable!
- Templates can be specified as easily as length/diameter, nominal, and tolerance.
- Measurement is automatic, free of any operation influence
- Point-to-point dimensioning by simply clicking on the part features, with unlimited zooming
- Software includes powerful tools, multiple filter types, and customizable macros
- Mounted on precision lapped granite for a qualified and thermally stable surface
- Ability to set warning tolerances to alert operator before a part goes out of tolerance
- All data, including template, result, and raw scan information are stored for easy product traceability. Result data can easily be imported into Excel, Minitab, or SPC programs for further analysis
- Three levels of password protection, customizable to a fine level of granularity, prevent unauthorized access to the system.
- Supports multiple languages: English, French, German -- more languages possible.
- Supports any combination of English and Metric units (inch, cm, mm).
- Size compensation feedback to the CAM.2, GT-9AC, and GT-610 CNC
- SQL ver
