GIANT FINISHING, INC

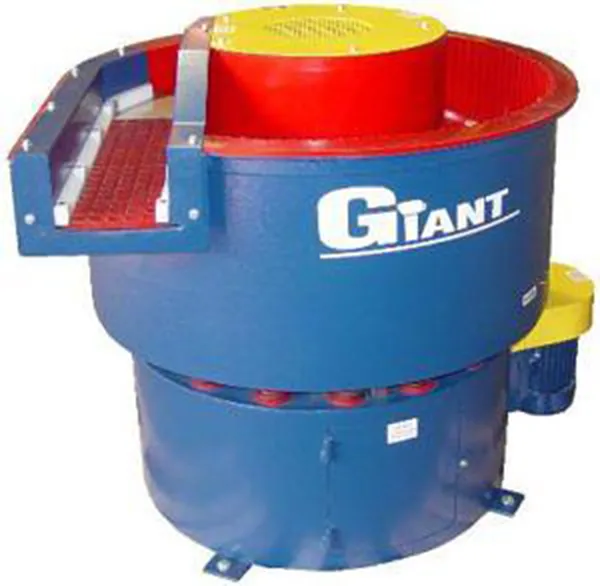

Vibratory Bowls GB Series

Spiral bottom machines feature 100% separation of parts and media with specially designed screens. We custom make these screens based on your parts sizes and media chosen for your process. Sometimes we need to engineer a specialty screen for unique processes. We have made it possible to fully automate the entire finishing process after the loading of parts, the machine will start, process, then unload your parts.

Different finishes are acquired not only through the correct compound and media selection, but also fine tuning of the drive electronically. Do not overlook this standard feature if you process a variety of parts and desire different finishes for each one.

STANDARD FEATURES:

• Electronic Variable speed drive
• Capacity 3 to 40 Cubic Feet
• Heavy duty bowl & base weldment
• Removable cast polyurethane drain plug
• J.I.C control panel
• Polyurethane lining
• Tuned Coil spring suspension
• Drop – on weight segments
• Removable cast urethane screen
• Adjustable amplitude flywheel
• Media discharge door
• Parts discharge ramp

OPTIONAL FEATURES:

• PLC Controls
• Auto pre-mixing compound system
• Auto Lubrication System
• Air Dam
• Sound Cover
• Automatic Unload
• Automatic Gate Clearing
• Reverse Separation
• High/Low PH Package
• Settling Tank
• Wrap Around Settling Tank
