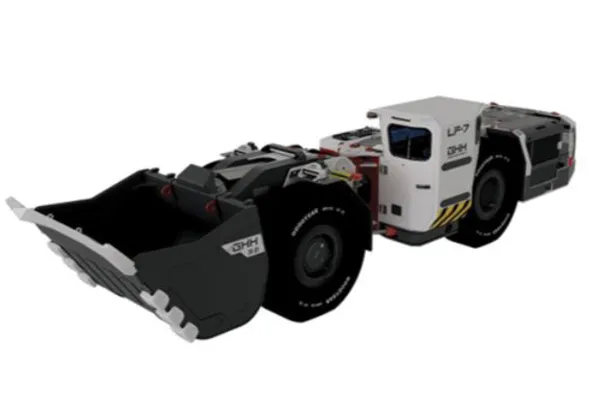

LHD - LF-7
MAIN FEATURES
Improved operator safety, ergonomics and comfort
Vehicle height 2 200 mm
Best in class loading performance
ROPS/FOPS certified canopy
The extremely robust frame and system design resulting in lowest operating cost
Enclosed canopy for better operator comfort
Customized buckets available optimized for hard rock applications
GET available mechanical or weld on
Excellent Traction
Separate brake flushing circuit
PDS (Personnel Detection System) interface
CANBUS electronics
Payload capacity 7 000 kg
MAIN DIMENSIONS
Length (tramming position) 8 800 mm
Length (loading position) 9 161 mm
Width (at cabin) 2 314 mm
Width (at drive unit) 1 999 mm
