GHH Mining Machines

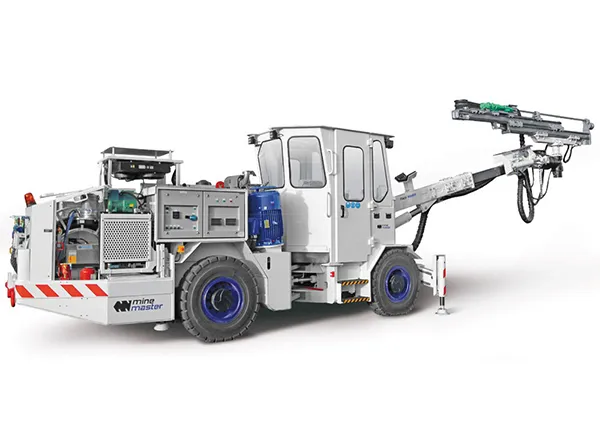

FACE MASTER 2.3-1B

The single boom drilling rig is designed for drilling blast holes of diameters between 41 mm and 76 mm. The unit can be used in methane-free mineral workings. Design allows effective drilling of blast holes in workings of height from 2,5m up to 6,1 m.

Features:

The Face Master 2.3-1B is a single boom face drilling rig with 56 m2 coverage and power shift four-wheel drive transmission.

Direct controlled drilling system with anti-jamming, collaring and feed control to optimize the drilling parameters.

B 40 L boom with 1500 mm extension.

sF 7000 series aluminium feed with hollow stainless steel wear rails –
