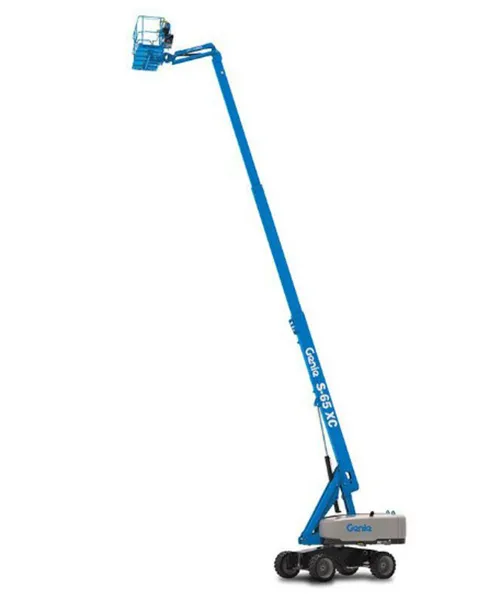

Genie XC Interactive Tool S-60 XC S-60 TraX and S-65XC S-65 TraX

S-60 XC, S-60 TraX and S-65XC, S-65 TraX

Able to perform a wider range of heavier lift tasks on construction and industrial jobsites with Genie® S®-60 XC™ and S-65 XC telescopic booms — offering a dual lift capacity of 660-lb (300 kg) unrestricted and 1,000-lb (454 kg) restricted and up to three people on board. These models are also available with a fixed, four-point track system that allows contractors to work any time of the year.

SpecificationValue

Max Working HeightS-60 XC: 20.29 m / S-65 XC: 21.81 m

Max Horizontal ReachS-60 XC, 14.80 m / S-65 XC, 16.51 m

Below Ground Reach1.65 m

Platform Capacity300 kg Unrestricted, 454 kg Restricted

Machine Width and Length2.49 m, 8.71 m
