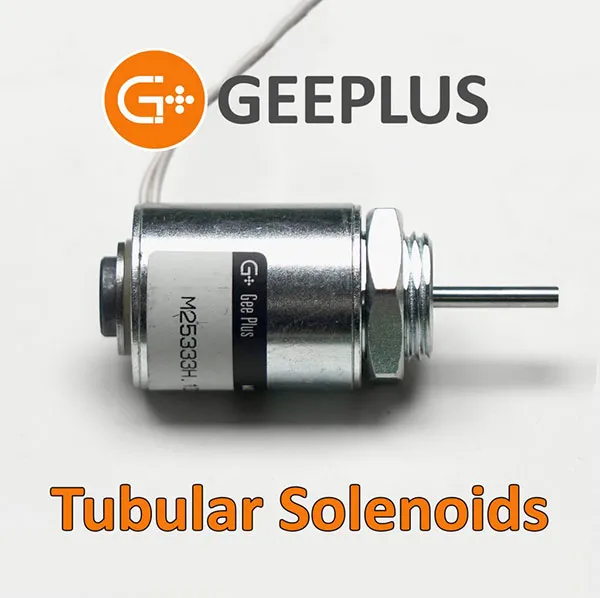

Tubular Solenoids

Tubular Solenoids

Tubular solenoids are especially optimized for long strokes. Tubular solenoids, like other linear solenoids, are on/off type actuators that develop force in one direction when energized. The return force must be provided externally, via a return spring for instance.

Notable Characteristics of our Tubular Solenoids:

• Stroke up to 30mm (depending on type)• Optimized for long strokes• Holding force up to 80N (in end-position, energized)• High life expectancy: Up to 30 million+ cycles• Pull and Push tubular versions available• Custom solenoids available, including latching versions (permanent magnet)

NOTE: Because each application is different, requiring varying levels of resistance, a spring is not included with these parts. Our engineers recommend a simple spring kit to choose the correct spring for each application. We can include them in volume if we have the specifications.
